Function
|
Measure AC/DC current, peak hold, online monitor
|
|
Size of clamp
|
Φ68mm
|
|
Range
|
DC:0.0A~2000A AC:0.0A~1500A
|
|
Accuracy
|
±2%rdg±3dgt
|
|
Resolution
|
0.1A
|
|
Dimension
|
224mm×115mm×43mm
|
|
Data interface
|
USB
|
|
Weight
|
515g(with battery)
|
|
Power Supply
|
Zn-Mn dry battery 6F22 9V, lasting for100hours
|
|
Test Mode
|
Clip-on CT, noncontact mode
|
|
Display Mode
|
Four digits LCD display
|
|
LCD Dimension
|
35mm×21.5mm; display domain: 32mm×15mm
|
|
Frequency
|
AC 45Hz~400Hz
|
|
Sampling Rate
|
2 times/s
|
|
Polarity Indication
|
DC current auto identified and display“—”
|
|
Test Position
|
Tested wire in the jaw center; Error will increase to 1.5%rdg max if deviate the center
|
|
Range Shift
|
Automatically
|
|
Line Voltage
|
AC600V
|
|
Software
|
with the software the data can upload to computer
|
|
Data Memory
|
99units, FULL blinks when the memory is full
|
|
Peak Hold
|
Push HOLD without release, the meter will show the peak value during the pushing period
|
|
Reading Hold
|
DH indicating the reading is hold
|
|
Out of Range
|
OL indicating the current is out of range
|
|
Auto Power-off
|
5 Minutes after power on, it will power off automatically to lower the power consumption
|
|
Battery Voltage
|
Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed
|
|
Consumption
|
10mW
|
|
Temperature and Humidity
|
-10?~50?; Below 80%rh
|
|
Max error refer to environment
|
-10?~0?,40?~50?,Error will increase max to 1%rdg
|
|
Temperature and Humidity for storage
|
-10?~60?,below 70%rh
|
|
Insulating Strength
|
AC2kV/rms. (between the alloy of the clamp and the housing)
|
|
Applicable safety rules
|
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT ?(600V)
|
|

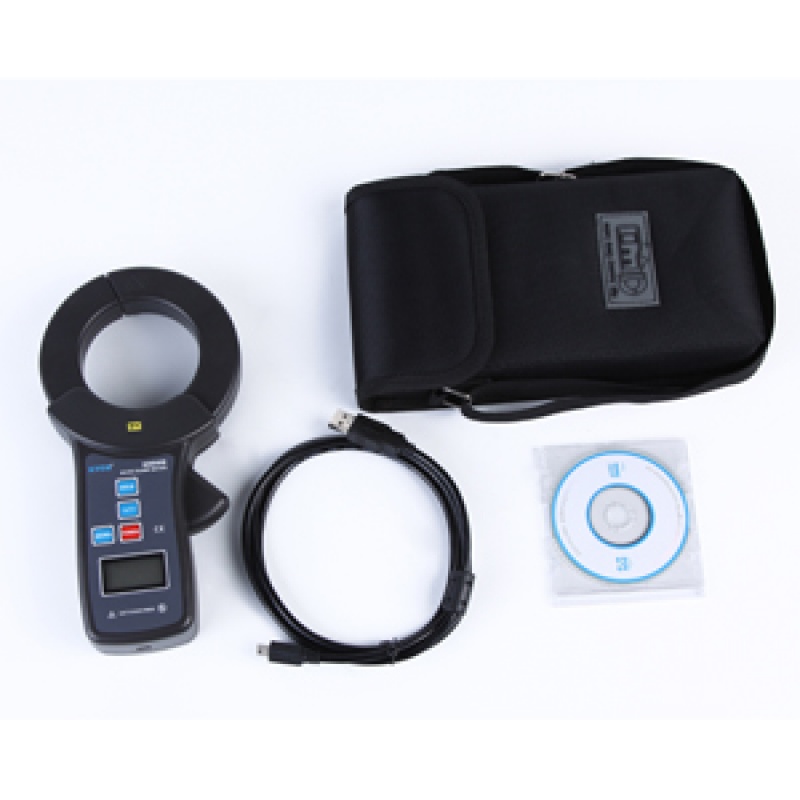

Accessories
|
Meter: 1pc; USB communication line: 1pc; software: 1pc; battery (6F22 9V):1pc.
|
