Opis

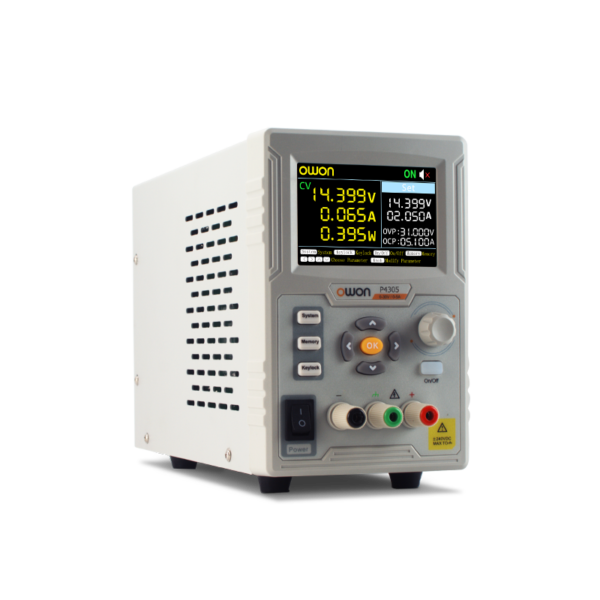

Model P4305
kanał : 1
Moc wyjściowa 150W
Wyjście 0 – 30V / 0 – 5A

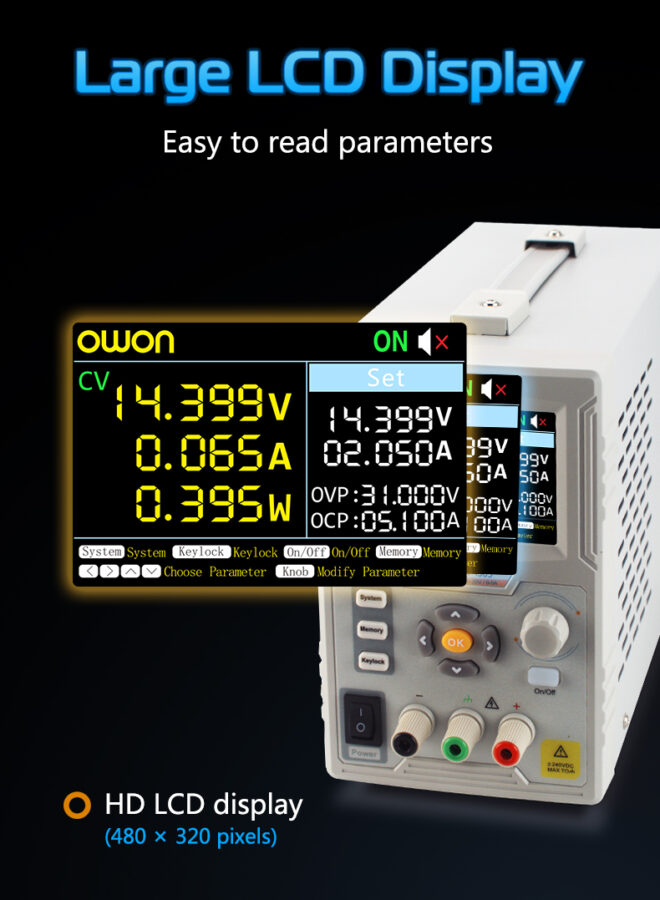

Wyświetlacz 3.7 cali kolor LCD

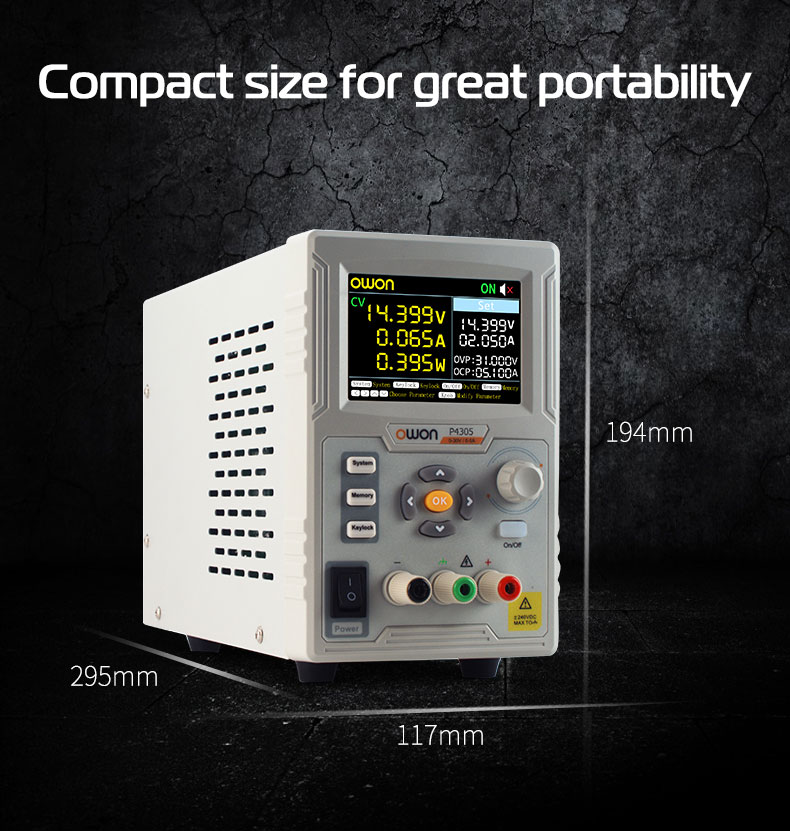

Wymiary 117mm(L) × 194mm(H)× 295mm(D)
Waga około 5.6 kg
Interfejs RS232
Rated Output (0℃-40℃)
Voltage 0 – 30V
Current 5A
Load Regulation
Voltage ≤0.01%+3mV
Current ≤0.01% + 3mA
Power Regulation
Voltage ≤0.01% + 3mV
Current ≤0.01% + 3mA
Setting Resolution
Voltage 1mV
Current 1mA
Readback Resolution
Voltage 1mV
Current 1mA
Dokładność (within 12 months) (25℃±5℃)
Voltage ≤0.03% + 10mV
Current ≤0.1% + 5mA
Readback Rozdzielczość (25℃±5℃)
Voltage ≤0.03% + 10mV
Current ≤0.1% + 5mA

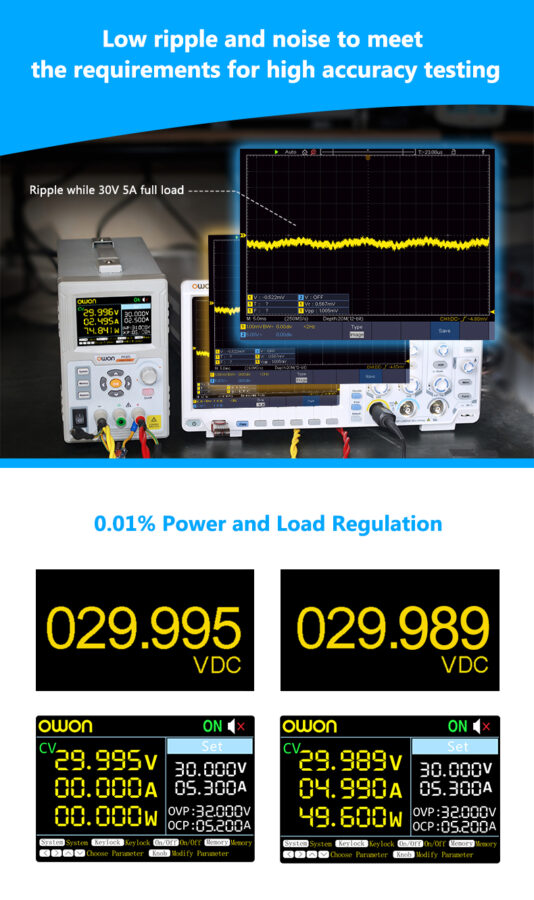

Ripple/Noise (20Hz-20MHz) Voltage (Vp-p) ≤4mVp-p
Voltage (rms) ≤1mVrms
Current (rms) ≤4mArms
Output temperature coefficient (0℃-40℃)
Voltage ≤0.03% + 10mV
Current ≤0.1% + 5mA
Readback temperature coefficient
Voltage ≤0.03% + 10mV
Current ≤0.1% + 5mA
Czas odpowiedzi 100 μs
Zapis 5 ustawień parametrów
Temperatura pracy 0-40℃
