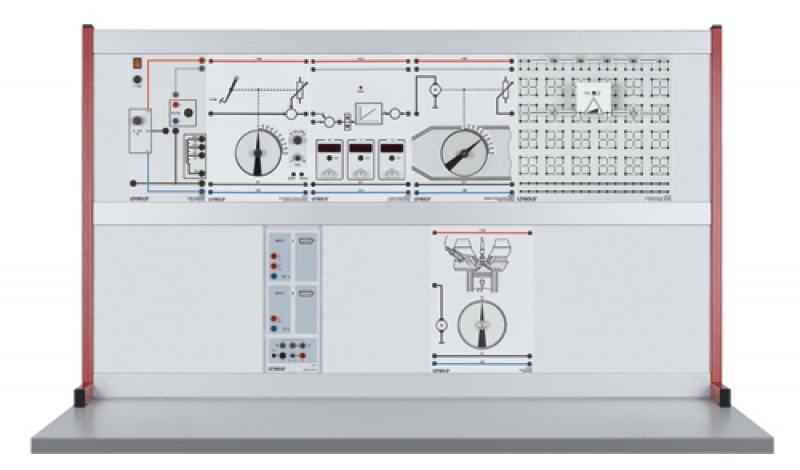

LEYBOLD’s educational system demonstrates on typical vehicle applications the fundamental theoretical relationships in control technology. Sensor-CASSY or multimeters can record the associated measurements. In particular, the following training contents are treated:
- Control technology systems’ function in motor vehicles
- IPO principle: signal input, processing and output
- Control processes
- Reference variable and correcting variable
- Open and closed regulator circuits
- How the electronic throttle works
- Study of disturbances
|
|
|
| 739 56 |
Electronic Gaspedal Accessory |
1 |
| 734 064 |
PID Digital Controller 8 |
1 |
| 579 161 |
Simulation Incline, STE 4/50 |
1 |
| 313 17 |
Stopclock II 8 |
1 |
| 577 32 |
Resistor 100 Ohm, STE 2/19 4 |
1 |
| 577 35 |
Resistor 200 Ohm, STE 2/19 4 |
1 |
| 577 40 |
Resistor 470 Ohm, STE 2/19 4 |
1 |
| 578 51 |
Diode 1N 4007, STE 2/19 4 |
1 |
| 579 13 |
Toggle switch STE 2/19 4 |
1 |
| 734 10 |
Servo Setpoint Generator |
1 |
| 734 13 |
Power Amplifier 8 |
1 |
| 734 14 |
DC-Servo |
2 |
| 726 10 |
Panel frame T150, Two Level |
1 |
| 726 50 |
Plug-in board 297 mm x 300 mm, STE 4 |
1 |
| 726 88 |
AC/DC Stabilizer 8 |
1 |
| 727 20 |
Automobile Meter Zero-Left |
1 |
| 524 013S |
Sensor-CASSY 2 Starter 4 |
1 |
| 539 000 |
Bridging plug, BST 4 |
10 |
| 500 592 |
Safety Bridging Plugs with Tap, black, set of 10 8 |
1 |
| 501 46 |
Connecting lead 19 A, 100 cm, red/blue, pair 8 |
2 |
| 500 853 |
Safety connecting leads, set of 25 |
1 |
| 501 48 |
Bridging plugs STE 2/19, set of 10 4 |
2 |
| 568 051L |
LIT: Open and Closed Loop Control in the Vehicle T 3.2.11 4 |
1 |
| 568 051S |
LIT: Open and Closed Loop Control in the Vehicle T 3.2.11 4 |
1 |
| 738 01 |
* Cable and plug box 4 |
1 |
| 500 593 |
* Fault simulation plugs, black, set of 10 |
1 |
| Articles marked with * are not essential, we do however recommend them to carry out the experiment. |
