Opis produktu – A2.6.1.5 System okablowania samochodu: nagłośnienie, sterowanie
A2.6.1.5 System okablowania samochodu: nagłośnienie, sterowanie

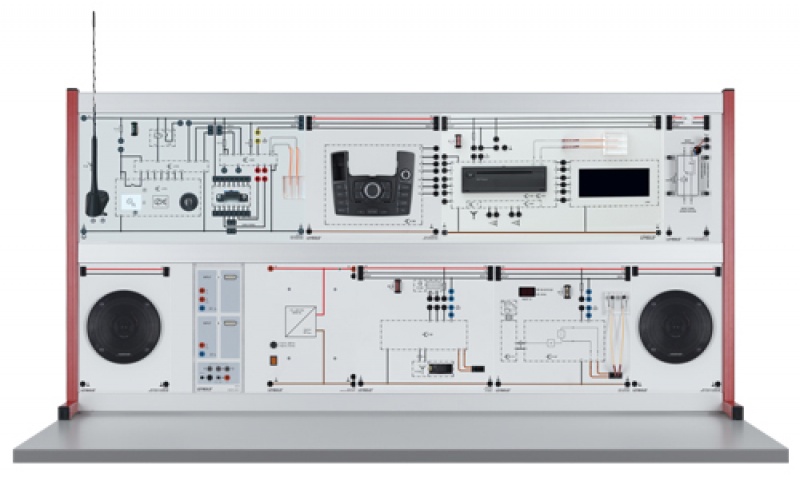

LEYBOLD’s MOST starter system Basic sets the MOST bus to transmit audio and diagnostic signals with a transmission rate of 21.2 MBit/s. The setup includes:
The control unit for information is connected to the gateway by FO, optionally the MOST signal can be transmitted via the MOST transceiver block (578 486) and so observed electrically with an oscilloscope. The FO are connected to a plexiglass coupler so that defective connectors can simply be simulated. The light input and output can also be observed during wake-up, data transmission and ring disruption diagnosis. The ring disruption diagnosis line is accessible on all MOST extensions. The self-diagnosis can be done with a diagnostic device via the gateway.
|
||
|
||
| 740 2010 | MOST Basic equipment Basic | 1 |
| 726 11 | Panel frame T180, Two Level | 1 |
| 738 02 | Automotive power supply 13.8 V/36 A 8 | 1 |
| 524 013S | Sensor-CASSY 2 Starter 4 | 1 |
| 739 731 | Broad Band Loudspeaker | 2 |
| 737 9803 | OBD Adaptor CAN+USB 8 | 1 |
| 740 2013 | MOST PC USB Interface | 1 |
| 740 2084 | MOST POF 0.75 m with connector | 2 |
| 740 20711 | MOST repeater TPS | 1 |
| 739 581USB | CAN bus adapter USB 8 | 1 |
| 739 587 | Software: CAN bus visualisation 4 | 1 |
| 575 299 | Digital Storage Oscilloscope 1522 | 1 |
| 501 02 | BNC cable, 1 m 4 | 3 |
| 739 743 | Digital rod antenna | 1 |
| 740 2014 | MOST DAB radio | 1 |
| 740 2012-08 | MOST BT Phone preparation | 1 |
| 740 2085 | MOST POF 1.5 m with connector | 1 |
| 738 9821 | Safety experiment cables, set of 51 | 1 |
| 566 078LDE | LIT: Infotainment with MOST Bus 4 | 1 |
| 739 5858 | * CAN Bus Fault Plugs, set of 6 | 1 |
| 738 01 | * Cable and plug box 4 | 1 |
| 738 491S | * Automotive fault simulator, starter 8 | 1 |
| 500 593 | * Fault simulation plugs, black, set of 10 | 1 |
| Articles marked with * are not essential, we do however recommend them to carry out the experiment. | ||
