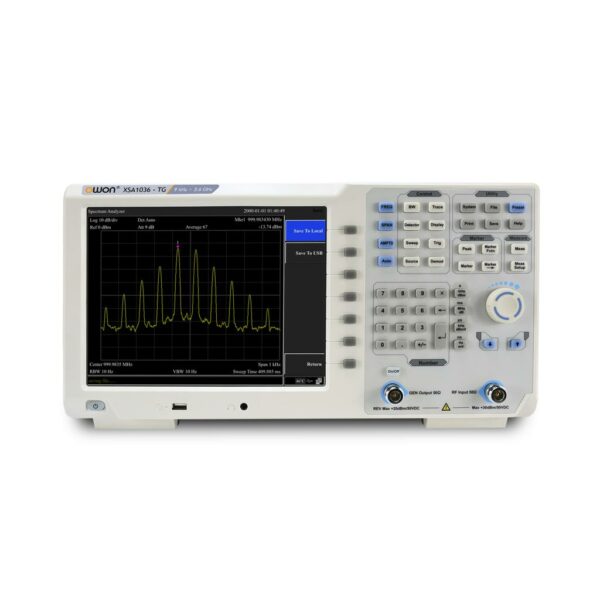

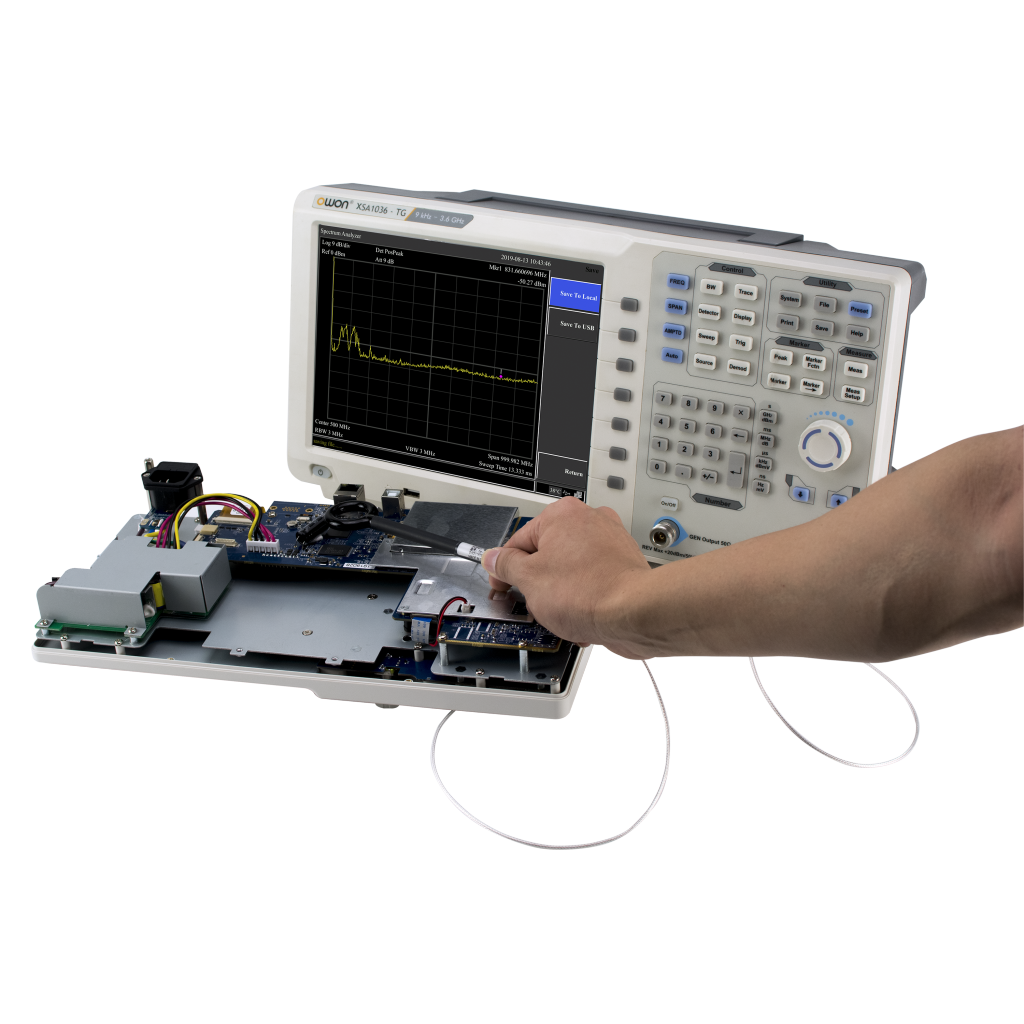

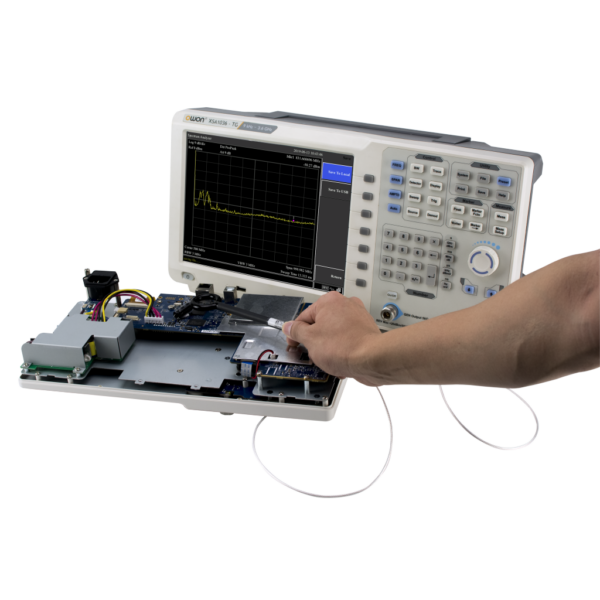

Opis produktu – Analizator widma XSA1075TG 9kHz – 7.5 GHz z generatorem śledzącym
| Model | XSA1015（TG) | XSA1032(TG) | XSA1036(TG) | XSA1075(TG) |
| Frequency | ||||
| Range | 9kHz-1.5 GHz | 9kHz-3.2 GHz | 9kHz-3.6 GHz | 9kHz-7.5 GHz |
| Resolution | 1Hz | |||
| Frequency span | ||||
| Range | 0 Hz，100 Hz to maximum frequency of device | |||
| Accuracy | ± span /（swept points -1） | |||
| Internal reference | ||||
| Reference frequency | 10.000000 MHz | |||
| Reference frequency accuracy | ±[（days from last calibrate × freq aging rate）+ temperature stability + initial accuracy ] | |||
| Temperature stability | <2.5ppm （15℃ to 35℃） | <1ppm（15℃ to 35℃） | ||
| Aging rate | <1ppm/year | |||
| Readout | ||||
| Marker frequency resolution | span/（the number of sweep points -1） | |||
| Uncertainty | ±（freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution） | |||
| Frequency counter | ||||
| Resolution | 1 Hz，10 Hz，100 Hz，1 kHz | |||
| Accuracy | ±（marker freq × freq reference uncertainty + counter resolution） | |||
| Bandwidth | ||||
| Resolution bandwidth (-3 dB) | 10Hz to 500kHz（in 1 to 10 sequence）， 1MHz，3MHz | |||
| Resolution filter shape factor | <5：1 nominal（Digital implement, similar to Gauss Pattern） | |||
| Accuracy | <5% nominal | |||
| Video bandwidth (-3 dB) | 10Hz to 3MHz | |||
| Amplitude Specification | ||||||
|---|---|---|---|---|---|---|
| Amplitude and electric level | ||||||
| Amplitude measurement range | DANL to +20 dBm， close the preamplifier | |||||
| Reference electric level | -80 dBm to +30 dBm，0.01dBm steps | |||||
| Preamplifier | 20 dB，nominal | |||||
| Input attenuator range | 0~40 dB，1 dB steps | 0~50 dB，1 dB steps | ||||
| Max input DC voltage | 50 VDC | |||||
| Max continuous power | +30dBm，average continuous power | |||||
| Displayed average noise level（DANL）Input attenuation 0 dB，1Hz resolution bandwidth | ||||||
| Preamp off | 1 MHz~10 MHz -140dBm（nominated） | |||||
| 10 MHz~1GHz -140dBm（nominated） | ||||||
| XSA1015TG:1GHz~1.5 GHz -138 dBm( nominated ) XSA1032TG:1GHz~3.2GHz -138 dBm( nominated ) XSA1036TG:1GHz~3.6 GHz -138 dBm( nominated ) XSA1075TG:1GHz~3.6GHz -138dBm( nominated )；4GHz~5GHz,-133dBm( nominated ) 5GHz~6GHz,-128dBm( nominated )；6GHz~7GHz-123dBm( nominated )； 7GHz~7.5GHz,-118dBm( nominated ) |
||||||
| Preamp on | 1 MHz~10 MHz -160dBm（nominated） | |||||
| 10 MHz~1GHz -160dBm（nominated） | ||||||
| XSA1015TG: 1GHz~1.5 GHz -158 dBm( nominated ) XSA1032TG: 1GHz~3.2 GHz -158 dBm( nominated ) XSA1036TG: 1GHz~3.6 GHz -158 dBm( nominated ) XSA1075TG: 1GHz~4GHz -158dBm( nominated );4GHz~5GHz -153dBm( nominated ) 5GHz~6GHz -148dBm( nominated );6GHz~7GHz -143dBm( nominated ) 7GHz~7.5GHz -138dBm( nominated ) |
||||||
| Phase noise | 20 ℃ ~30 ℃，fc=1 GHz | |||||
| Phase noise | <-82 dBc/Hz @10 kHz offset | <-98 dBc/Hz @10 kHz offset | ||||
| <-100 dBc/Hz @100 kHz offset | ||||||
| <-110 dBc/Hz @1 MHz offset | ||||||
| Level display range | ||||||
| Log scale coordinate | 1dB ~255dB | |||||
| Linear scale coordinate | 0 to reference level | |||||
| level unit | dBm, dBuW, dBpW, dBmV, dBuV, W,V | |||||
| Points | 201~1001 | |||||
| Number of traces | 5 | |||||
| Detectors | Positive-peak, negative-peak, sample, normal, RMS | |||||
| Trace functions | Clear write, Max Hold, Min Hold, View, Blank, Average | |||||
| Frequency response | ||||||
| 20℃ ~30℃，30%~70% relative humidity, 20 dB input attenuation, reference 50 MHz | ||||||
| Preamp off | ±0.8 dB； | |||||
| Preamp on | ±0.9 dB； | |||||
| Accuracy | ||||||
| Input Attenuation Switching Uncertainty | 20℃ ~30℃， fc=50 MHz，Preamplifier Off， 20dB RF attenuation，input signal 1~40 dB ±0.5 dB |
|||||
| Absolute Amplitude Uncertainty | 20℃ ~30℃， fc=50 MHz，RBW=1 kHz，VBW=1 kHz，peak detector, 20 dB RF attenuation， Preamplifier Off ±0.4 dB，input signal= -20dBm Preamplifier On ±0.5 dB, input signal= -40dBm |
|||||
| Uncertainty | input signal range 0dbm~-50dbm | |||||
| ±1.5 dB | ||||||
| VSWR | input 10 dB RF attenuation，1 MHz~1.5GHz | input 20 dB，1 MHz~7.5GHz | ||||
| <1.5，nominal | ||||||
| Distortion and spurious response | ||||||
| Second harmonic distortion | fc ≥ 50 MHz，Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 ℃ to 30 ℃ | |||||
| -65dbc | ||||||
| Third-order intermodulation | fc ≥ 50 MHz | |||||
| +2 dBm (NSA1015/NSA1032/NSA1036) +10dBm(NSA1075) |
||||||
| 1 dB Gain Compression | fc ≥ 50 MHz， 0 dB RF attenuation，Preamp off , 20 ℃ to 30 ℃ | |||||
| +2 dBm, nominal | ||||||
| Residual response | connect 50 Ω load at input port，0 dB input attenuation，20 ℃ to 30 ℃ | |||||
| <-85dBm，nominated | ||||||
| Input related spurious | -30 dBm signal at input mixer，20 ℃ to 30 ℃ | |||||
| <-60 dBc | ||||||
| Sweep time and triggering | ||||||
| Span range | 100Hz≤SPAN≤3GHz 10ms to 3000s zero sweep width 1ms to 3000s |
|||||
| Mode | Continue, single | |||||
| Trigger | Free run, video | |||||
| Tracking generator | ||||||
| Output frequency range | 100 kHz~1.5 GHz | 100 kHz~3.2 GHz | 100 kHz~3.6 GHz（Tracking generator） 35 MHz~3.6 GHz（Tracking generator） |
100 kHz~7.5 GHz（Tracking generator） | ||
| Output power level range | -30 dBm~0 dBm ， | -40 dBm~0 dBm ， | ||||
| Output power level resolution | 1dB | |||||
| Output flatness | +/-3 dB | |||||
| Maximum safe reverse level | Average total power：+30 dBm，DC : ±50 VDC | |||||
| Inputs and Outputs | ||||||
| Front panel RF input connector | 50 Ω，N-type female | |||||
| Front panel track generator output | 50 Ω，N-type female | |||||
| 10 M reference input | 50 Ω，N-type female | |||||
| Communication port | USB HOST, USB DEVICE, LAN, earphone port, REF and VGA | |||||
| General techincal specification | ||||||
| Display | TFT LCD，10.4 inches | |||||
| Weight (without package) | About 5 kg | |||||
| Dimension (W × H × D) | 421 × 221 × 115 (mm) | |||||
| Working temperature | 0~40 ℃ | |||||
| Storage temperature | -20 °C to +60 °C | |||||
| Power | 100V~240V 50/60Hz | |||||
