Opis produktu – E 2.1.3.3 Modele szkoleniowe maszyn niskiego napięcia

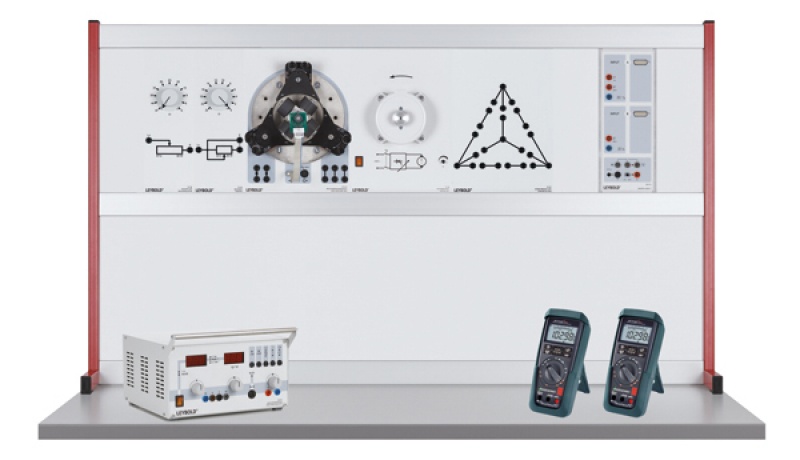

The experiments use components from the electrical machine teaching models system and utilise safety extra-low voltage. All machines are mounted on a base unit which is set up vertically in a training panel frame.
Objectives
- Recognising basic physical principles
- Recording machine characteristics
- Introduction to drive technology
- Use of simple tools (spanners, oil cans etc.)
The equipment set is complete and contains all available components for the electrical machine teaching models using safety extra-low voltage. This allows all the experiments on electrical machines, including the modern high-efficiency machines, to be carried out.
The equipment set incorporates student experiments which can be carried out in a laboratory safely using safety extra-low voltage. Experiment instructions are contained in a manual in either printed or digital form.
The target group is made up of students in general or vocational education. The experiments are designed as an introduction at a simple level of understanding.
The knowledge gained from these experiments can be directly applied to the area of industrial machines. The electrical machine teaching models for safety extra-low voltage are therefore the ideal preparation for experimenting with commercial industrial machines.
Topics
- Magnetic fields and electrical machines
- AC generators with permanent magnet
- Display of AC voltage
- How terminal voltage depends on speed and load
- Determination of neutral zone
- Three-pole rotors/twelve-pole rotors
- Increasing generator power by means of separate excitation
- How terminal voltage depends on speed and excitation voltage
- Remanence and self-excitation
- Series-wound and shunt-wound generators
- Compound-wound generators
- AC generators
- Stationary armature and rotating armature machines
- Three-phase generators
- Generator with load in star circuits with and without neutral conductor
- Operating response of generators in delta configuration
- Synchronisation of three-phase generators with the mains
- DC motors
- Commutation
- Motors with separate excitation
- DC shunt-wound motors
- Response of speed to starting and field control
- Speed response under load
- Reversal of the rotational sense
- AC motors
- Universal motors
- Single-phase synchronous and asynchronous (induction) motors
- Starting motors
- Single-phase induction motor with capacitive/resistive auxiliary phase
- Repulsion motors
- Speed control and reversal by adjusting brushes
- Shaded-pole motors
- Rotating fields
- Reversal
- Three-phase motors
- Three-phase squirrel cage rotors
- Star and delta circuit configurations
- Speed response under load
- Braking circuits
- DC braking
- Stator-resistance starting circuit
- Three-phase slip-ring rotors
- Rotor standstill voltage and rotor current
- Switchable pole three-phase motors in Dahlander configuration
- Three-phase machine with six pole pieces
- Synchronous motors
- Linear motors
- Synchronous machines (PMSM)
- BLDC operation
- Generator operation
- Block and sinusoidal modulation
- Rotor position sensor with Hall-effect components
- Comparison between star and delta circuit configurations
- Step operation
Similar to illustration
| 563 11 | ELM coil, 250 turns | 6 |
| 563 12 | ELM squirrel-cage rotor | 1 |
| 563 13 | ELM brush | 5 |
| 563 16 | Allen key | 1 |
| 563 17 | ELM centring disc | 1 |
| 563 18 | ELM brush holder rack | 1 |
| 563 22 | ELM two-pole rotor | 1 |
| 563 23 | ELM three-pole rotor | 1 |
| 563 24 | ELM drum rotor | 1 |
| 563 25 | ELM rotating field attachment and squirrel cage ring | 1 |
| 563 28 | ELM magnetic needle rotor | 1 |
| 563 29 | ELM aluminium ring with iron disc | 1 |
| 563 31 | Oil, 100 ml, in dropping bottle | 1 |
| 727 811 | Basic machine unit | 1 |
| 727 82 | Basic terminal unit | 1 |
| 727 83 | Set of masks | 1 |
| 727 85 | Starter | 1 |
| 727 86 | Field regulator | 1 |
| 727 87 | Star-delta load | 1 |
| 727 88 | Drive unit | 1 |
| 685 96 | Driving belt, long for drive unit 72788 | 1 |
| 563 091 | ELM pole piece for magnets | 2 |
| 563 101 | ELM wide pole piece for coils | 3 |
| 563 115 | ELM coil, 500 turns | 2 |
| 563 201 | ELM narrow pole piece for coils | 6 |
| 563 211 | ELM split pole piece for coils | 2 |
| 727 91 | Linear motor basic unit | 1 |
| 727 92 | Linear motor with coil assembly | 1 |
| 727 815 | ELM set: Multipole stator and rotor | 1 |
| 727 816 | ELM PM magnet rotor with inner magnets | 1 |
| 727 812 | Rotor position pick-up | 1 |
| 505 171 | Bulbs, 6 V/1.1 W, E10, set of 10 | 3 |
| 505 191 | Bulbs, 15 V/2 W, E10, set of 5 | 3 |
| 510 48 | Magnets, 35 mm Ø, pair | 1 |
| 578 16 | Capacitor, 4.7 µF, STE 2/19 | 3 |
| 579 06 | Lamp holder, E10, top, STE 2/19 | 3 |
| 579 10 | Push button (NO), STE 2/19 | 1 |
| 579 13 | Toggle switch, STE 2/19 | 1 |
| 313 20 | * Digital hand-held tachometer | 1 |
| 524 013S | * Sensor-CASSY 2 Starter | 1 |
| 531 282 | Multimeter Metrahit Pro | 2 |
| 726 09 | Panel frame T130, two-level | 1 |
| 725 721G | Three-phase generator in case | 1 |
| 725 579G | * Three-phase supply / experiment transformer | 1 |
| 563 04 | Storage tray for ELM apparatus | 1 |
| 500 59 | Safety bridging plugs, black, set of 10 | 1 |
| 500 592 | Safety bridging plugs with tap, black, set of 10 | 1 |
| 501 532 | Connecting leads, 19 A, set of 30 | 1 |
| 564 171 | LIT: El. Motor & Gen. Mod. B (German) | 1 |
| 564 172 | * LIT: El. Motor & Gen. Mod. B (English) | 1 |
| 569 080DE | LIT: Autom. E-Machines A2.7.2.1 | 1 |
Articles marked with * are not essential, we do however recommend them to carry out the experiment.
