E 2.2.6.2 Maszyny DC bezszczotkowe 0.3kW

The experiments are carried out using machines of industrial manufacture. All the test machines are equipped with a special base for attachment to the Machine test system 0.3. The system allows the characteristics of the machines under test to be recorded. Power for the machines under test is provided either directly from the mains or via special laboratory power supplies.

Objectives

• Protective measures and electrical safety
• Setting up electrical machines and putting them into operation
• Use of starting circuits
• Assessment of electrical machine characteristics

Mechatronics machines are used in the field of automation. They are distinguished by their area of application, whereby the physical operating principle is unimportant. AC servo motors (synchronous machine) and frequency converter motors (asynchronous machine) are both used. Mechatronics machines of small to medium power carry out positioning tasks. Control of the machines always requires power electronics components.

Features

• In order to protect against overheating, the stator windings of the test machines are equipped with temperature sensors
• Should overheating occur, the machine testing system automatically shuts down the machine under test, thus preventing any damage to it.
• The test machines are equipped with an educationally designed terminal board with the winding configuration printed on it.
• The ends of all the windings are connected to the terminal board and can be accessed via 4-mm safety sockets.
• Computer-supported acquisition of measurement data provides for meaningful measurement results.

The individual equipment set is equally suitable for student experiments in laboratories with low voltage supplies (400 V three-phase) and for setting up on a mobile trolley for demonstration by teachers in a classroom. The procedures for the experiments are provided in a printed manual.

The target group is made up of commercial apprentices and students of electrical machine construction. The course offers experiments at an intermediate level and also allows for the necessary insight into machine behaviour for scientific interpretation at undergraduate level.

Topics

• Design and function
• Operation with a power amplifier
• How current and voltage change over time
• Load characteristics
• Automatic or closed-loop current, speed and positioning control
• Dynamics and changing direction of rotation
• Variable speed and load

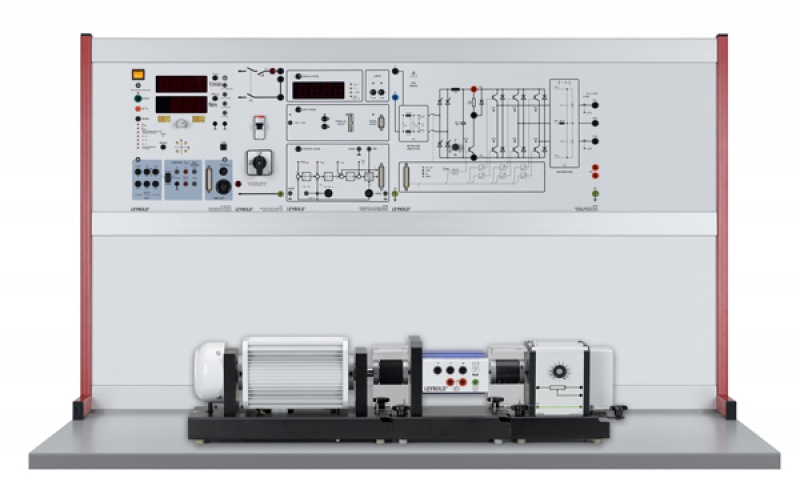

Similar to illustration
