E 2.6.2.1 Serwomechanizmy AC z blokiem komutacyjnym

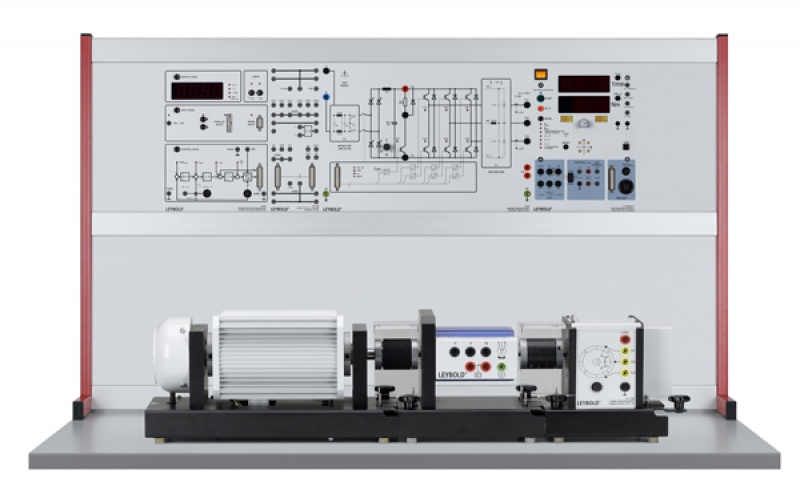

The experiments are carried using training panels in panel frames.

Objectives

• Experiment set-up and wiring according to circuit diagrams
• Working with closed-loop control systems
• Optimisation of servo systems
• Use of computer-controlled measuring interfaces

Stepper motors are a special variety of synchronous motor with a large number of pole pairs. The rotor follows the stator field in steps, the size of which is determined by the number of poles. With normal loading, the angular position of the rotor can be determined precisely. If overloaded, however, step losses arise and information about the current position of the rotor is lost. Stepper motors can be wired to operate in both half-step and full-step modes. Due to their discontinuous operation, stepper motors are the ideal drive systems for digital servo systems.

The equipment set incorporates student experiments which can be carried out in a laboratory safely using safety extra-low voltage. Experiment instructions are contained in a manual in either printed or digital form.

The target group is made up of commercial apprentices and students of power engineering and mechatronics. The course offers introductory experiments at an intermediate level for vocational schools and colleges.

Topics

• Operation of a simple stepper motor: half-step, full-step
• Design of a stepper motor: function, step angle
• Control methods for bipolar and unipolar stepper motors
• Control program for full and half steps using a unipolar stepper motor
• Control logic with external control
• Dynamic response
• Time constants of the windings
• Rate of rise in current as a function of the clocking frequency
• Starting/stopping regions: start frequencies
• Mechanical resonances: effect of load coupling
• Response as a function of clock frequency

Articles marked with * are not essential, we do however recommend them to carry out the experiment.
