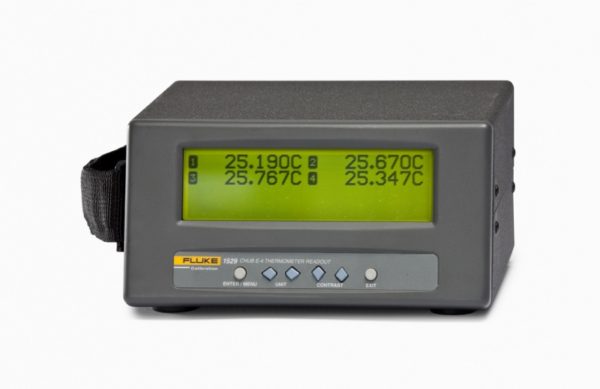

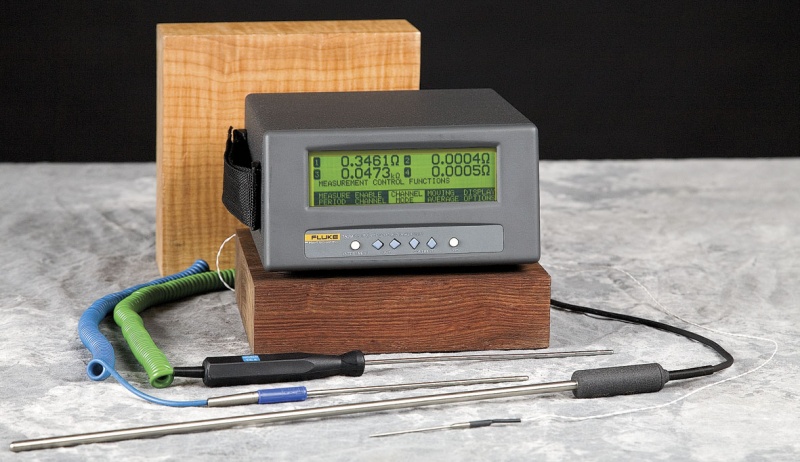

Opis produktu – Fluke 1529 Czterokanałowy Termometr Precyzyjny
Laboratoryjna dokładność na czterech kanałach dla sond PRT, termistorów i termopar.
- Dokładność ±0.0025°C (tylko miernik)
- Wyświetla osiem wybranych przez użytkownika pól danych dla każdego kanału
- Rejestruje 8,000 odczytów ze znacznikami daty i czasu
- Akredytowana kalibracja
| PRT / RTD | Termistor | Termopara | |
| Wejście |
2 channels PRT/thermistor and 2 channels TC, or 4 channels PRT/thermistor, or 4 channels TC, specify when ordering; PRT/thermistor channels accept 2, 3, or 4 wires; TC inputs accept B, E, J, K, N, R, S, T, and Au-Pt TC types. (Support for C and U type thermocouples is available. Download the application note Using Fluke Calibration Readouts with Tungsten-Rhenium and other Thermocouples from www.flukecal.com.) |
||
| Zakres temperatury | –189 °C to 960 °C | –50 °C to 150 °C | –270 °C to 1800 °C |
| Zakres pomiaru | 0 to 400 W | 0 to 500 KW | –10 to 100 mV |
| Charaktrerystyka | ITS-90, IEC-751 (DIN “385”), Callendar-Van Dusen | Steinhart-Hart, YSI-400 | NIST Monograph 175, 3-point deviation function applied to NIST 175, 6th-order polynomial |
|
Dokładność temperatury (tylko miernik) |
± 0.004 °C at –100 °C ± 0.006 °C at 0 °C ± 0.009 °C at 100 °C ± 0.012 °C at 200 °C ± 0.018 °C at 400 °C ± 0.024 °C at 600 °C |
± 0.0025 °C at 0 °C ± 0.0025 °C at 25 °C ± 0.004 °C at 50 °C ± 0.010 °C at 75 °C ± 0.025 °C at 100 °C
|
Ext. RJC Int. RJC B at 1000 °C ± 0.6 °C ± 0.6 °C E at 600 °C ± 0.07 °C ± 0.25 °C J at 600 °C ± 0.1 °C ± 0.35 °C K at 600 °C ± 0.15 °C ± 0.4 °C N at 600 °C ± 0.15 °C ± 0.3 °C R at 1000 °C ± 0.4 °C ± 0.5 °C S at 1000 °C ± 0.5 °C ± 0.6 °C T at 200 °C ± 0.1 °C ± 0.3 °C |
| Rodzielczość temperatury | 0.001 ° | 0.0001 ° | 0.01 to 0.001 ° |
| Dokładność Rezystancji / Napięcia |
0 W to 20 W: ± 0.0005W 20 W to 400 W: ± 25 ppm of rdg. |
0 W to 5 KW: ± 0.5 W 5 KW to 200 KW: ± 100 ppm of rdg. 200 KW to 500 KW ± 300 ppm of rdg. |
–10 to 50 mV: ± 0.005 mV 50 to 100 mV: ± 100 ppm of rdg. Internal RJC: ± 0.25 °C) |
| Zakres pracy | 16 °C to 30 °C | ||
| Częstotliwość pomiaru | 0.1 second to 1 hour; inputs may be read sequentially or simultaneously at 1 second or greater interval | ||
| Prąd wzbudzenia | 1 mA, reversing | 2 and 10 µA, automatically selected | n/a |
|
Wyświetlacz |
33 x 127 mm (1.3 x 5 in) backlit LCD graphical display | ||
| Wyświetlane jednostki | °C, °F, K, W, KW, mV | ||
| Zapis danych | Up to 8,000 time- and date-stamped measurements can be logged | ||
| Interwał zapisów | 0.1, 0.2, 0.5, 1, 2, 5, 10, 30, or 60 seconds; 2, 5, 10, 30, or 60 minutes | ||
| Uśrednianie | Moving average of most recent 2 to 10 readings, user selectable | ||
| Podłączenie czujnika | Patented DWF Connectors accept mini spade lug, bare-wire, or mini banana plug terminations | Universal receptacle accepts miniature and standard TC connectors | |
| Komunikacja | RS-232 included, IEEE-488 (GPIB) optional | ||
| Zasilanie AC | 100–240 V ac, 50-60 Hz, 0.4 A | ||
| Zasilanie DC | 12–16 VDC, 0.5 A (battery charges during operation from 14.5 to 16V DC, 1.0A) | ||
| Bateria | NiMH, 8 hours of operation typical without backlight, 3 hours to charge, 500 cycles | ||
| Wielkość (HxWxD) | 102 x 191 x 208 mm (4.0 x 7.5 x 8.2 in) | ||
| Waga | 2 kg (4.5 lb) | ||
| Kalibracja | Accredited resistance and voltage calibrations are provided. | ||
