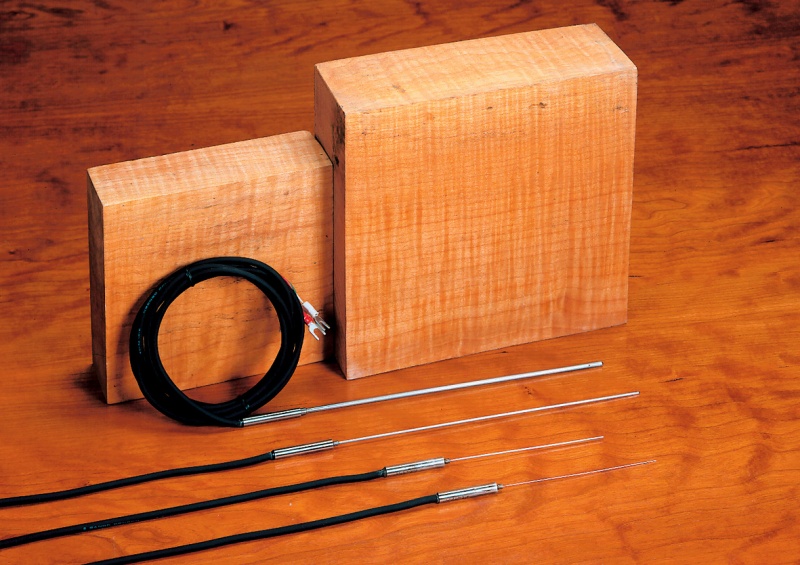

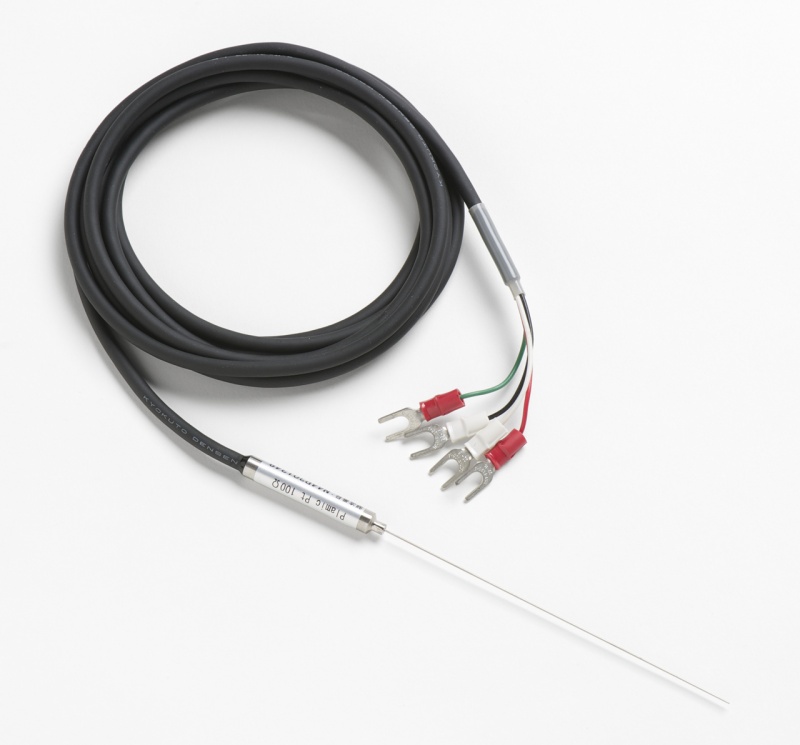

Name: Fluke 5622 Szybkie Sondy PRT
Brand: Fluke Calibration

Opis produktu – Fluke 5622 Szybkie Sondy PRT

Specyfikacja


Zakres temperatury	–200 °C to 350 °C
Nominal R_TPW	100 W
Współczynnik temperaturowy	0.00385 W /W/°C nominal
Calibrated Probe Accuracy (includes calibration uncertainty and short-term stability)	5622-05 and 5622-10: ± 0.04 °C at –200 °C ± 0.04 °C at 0 °C ± 0.09 °C at 200 °C ± 0.09 °C at 300 °C 5622-16 and 5622-32: ± 0.04 °C at –200 °C ± 0.04 °C at 0 °C ± 0.045 °C at 200 °C ± 0.055 °C at 300 °C
Uncalibrated DIN/IEC Conformity	DIN/IEC Class A; ± 0.15 °C at 0 °C
Stała czasowa (63.2 %)	From 0 °C to 100 °C: 5622-05: 0.4 seconds 5622-10: 1.5 seconds 5622-16: 3.0 seconds 5622-32: 10 seconds (90 %)
Głębokość zanurzenia czujnika	5622-05: 10 mm (0.4 in) 5622-10: 20 mm (0.8 in) 5622-16: 32 mm (1.25 in) 5622-32: 64 mm (2.5 in)
Thermal EMF	20 mV at 350 °C
Obudowa	316 SST 5622-05: 100 x 0.5 mm (4 x 0.02 in) 5622-10: 100 x 1.0 mm (4 x 0.04 in) 5622-16: 200 x 1.6 mm (8 x 0.06 in) 5622-32: 200 x 3.2 mm (8 x 0.13 in)
Przewód	PVC, 4-wire cable, 2 meters long, 90 °C max temp

Fluke 5622 Szybkie Sondy PRT
