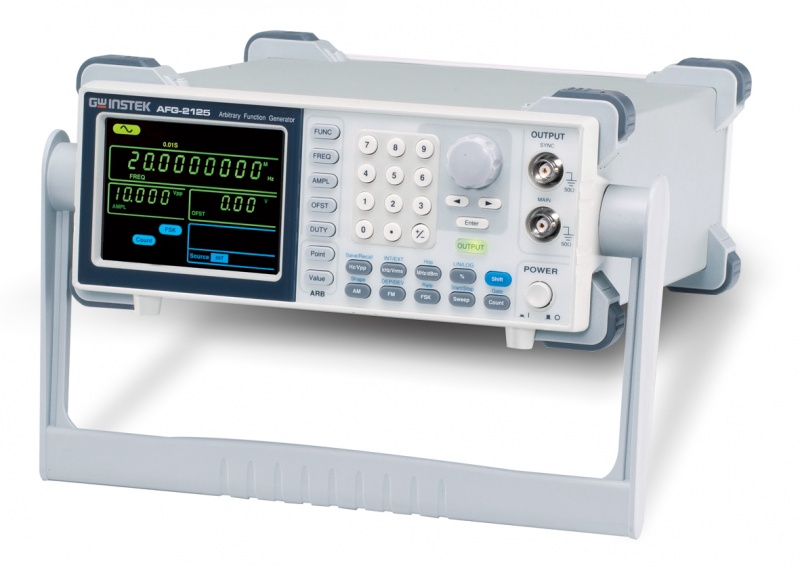

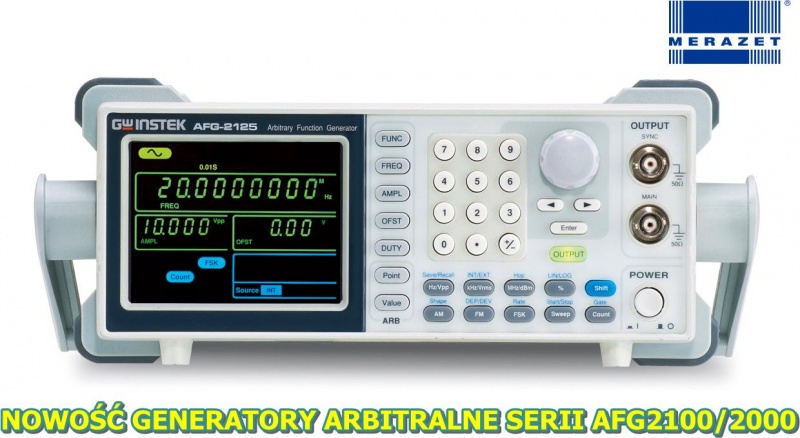

| Instek AFG-2105 |
| Waveforms |
| Waveforms |
Sine, Square, Ramp, Noise, Arbitrary Waveform |
| Arbitrary Waveform |
| Sample Rate |
20 MSa/s |
| Repetition Rate |
10MHz |
| Waveform Length |
4k points |
| Amplitude Resolution |
10 bit |
| Non-Volatile Memory |
4k points |
| Frequency Characteristics |
| Range |
Sine, Square |
0.1Hz to 5MHz |
| Ramp |
0.1Hz ~ 1MHz |
| Resolution |
0.1Hz |
| Accuracy |
Stability |
±20 ppm |
| Aging |
±1 ppm, per 1 year |
| Tolerance |
0.1Hz ~ 1MHz |
| Output Characteristics |
| Amplitude |
Range |
1 mVpp to 10 Vpp( into 50Ω), 0.1Hz?20MHz
2 mVpp to 20 Vpp(open-circuit) , 0.1Hz?20MHz
1 mVpp to 5 Vpp( into 50Ω), 20MHz?25MHz
2 mVpp to 10 Vpp(open-circuit), 20MHz?25MHz |
| Accuracy |
± 2% of setting ±1 mVpp (at 1 kHz, >10 mVpp) |
| Resolution |
1 mV or 3 digits |
| Flatness |
± 1% (0.1dB) ≤100kHz
± 3% (0.3 dB) ≤5MHz
± 4% (0.4 dB) ≤12MHz
± 20% (2 dB) ≤20MHz
± 5% (0.4 dB) ≤25MHz
(sine wave relative to 1 kHz) |
| Units |
Vpp, Vrms, dBm |
| Offset |
Range |
±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)
±2.5 Vpk ac +dc (into 50Ω) for 20MHz-25MHz
±5Vpk ac +dc (Open circuit) for 20MHz-25MHz |
| Accuracy |
2% of setting + 5 mV+ 0.5% of amplitude |
| Output |
Impedance |
50Ω typical (fixed) > 300kΩ (output disabled) |
| Protection (main output) |
Short-circuit protected by overload relay automatically disables output |
| SYNC Output |
Level |
TTL-compatible into > 1kΩ |
| Impedance |
50Ω nominal |
| Rise or Fall Time |
≥25ns |
| Sine wave Characteristics |
Harmonic Distortion |
–55 dBc DC ~ 200kHz, Ampl > 0.1Vpp
–50 dBc 200kHz ~ 1MHz, Ampl > 0.1Vpp
–35 dBc 1MHz ~ 5MHz, Ampl > 0.1Vpp
–30 dBc 5MHz ~ 25MHz, Ampl > 0.1Vpp |
| Square wave Characteristics |
Rise/Fall Time |
≥25ns at maximum output (into 50Ωload) |
| Overshoot |
< 5% |
| Asymmetry |
1% of period+1 ns |
| Variable Duty Cycle |
1.0% to 99.0% ≤ 100kHz
20.0% to 80.0% ≤ 5 MHz
50% ≤ 25MHz |
| Ramp Characteristics |
Linearity |
< 0.1% of peak output |
| Variable Symmetry |
0% to 100%(0.1% Resolution) |
| AM Modulation |
| Carrier Waveforms |
Sine, Square, Triangle |
| Modulating Waveforms |
Sine, Square, Triangle |
| Modulating Frequency |
2 mHz to 20 kHz (Int) DC to 20KHz (Ext) |
| Depth |
0% to 120.0% |
| Source |
Internal / External |
| FM Modulation |
| Carrier Waveforms |
Sine, Square, Triangle |
| Modulating Waveforms |
Sine, Square, Triangle |
| Modulating Frequency |
2 mHz to 20 kHz (Int) DC to 20KHz (Ext) |
| Depth |
DC to Max Frequency |
| Source |
Internal / External |
| SWEEP |
| Waveforms |
Sine, Square, Triangle |
| Type |
Linear or Logarithmic |
| Start F / Stop F |
0.1Hz to Max Frequency |
| Sweep Time |
1 ms to 500 s |
| Source |
Internal / External |
| FSK |
| Carrier Waveforms |
Sine, Square, Triangle |
| Modulating Waveforms |
50% duty cycle square |
| Modulation Rate |
2mHz to 100kHz(INT)
DC to 100kHz(Ext) |
| Frequency Range |
0.1Hz to Max Frequency |
| Source |
Internal / External |
| Frequency Counter |
| Range |
5Hz to 150MHz |
| Accuracy |
Time Base accuracy±1count |
| Time base |
±20ppm (23°C ± 5°C) after 30 minutes warm up |
| Resolution |
100nHz for 1Hz,
0.1Hz for 100MHz. |
| Input Impedance |
1kΩ/1pf |
| Sensitivity |
35mVrms ~ 30Vms (5Hz to 150MHz) |
| System Characteristics |
| Store/Recall |
10 Groups of Setting Memories |
| Interface |
USB(Device) |
| Display |
LCD |
| General Specifications |
| Power Source |
AC100?240V , 50?60Hz |
| Power Consumption |
25 VA |
| Operating Environment |
Temperature to satisfy the specification : 18 ~ 28°C Operating temperature : 0 ~ 40°C Relative Humidity: ≤ 80%, 0 ~ 40°C ≤ 70%, 35 ~ 40°C Installation category? CAT II |
| Operating Altitude |
2000 meters |
| Storage Temperature |
-10 ~ 70°C, Humidity: ≤70% |
| Dimensions (WxHxD) |
266(W)×107(H)×293(D) mm |
| Weight |
Approx. 2.5 kg |
