[700 1201] COM3LAB Course: DC Technology II

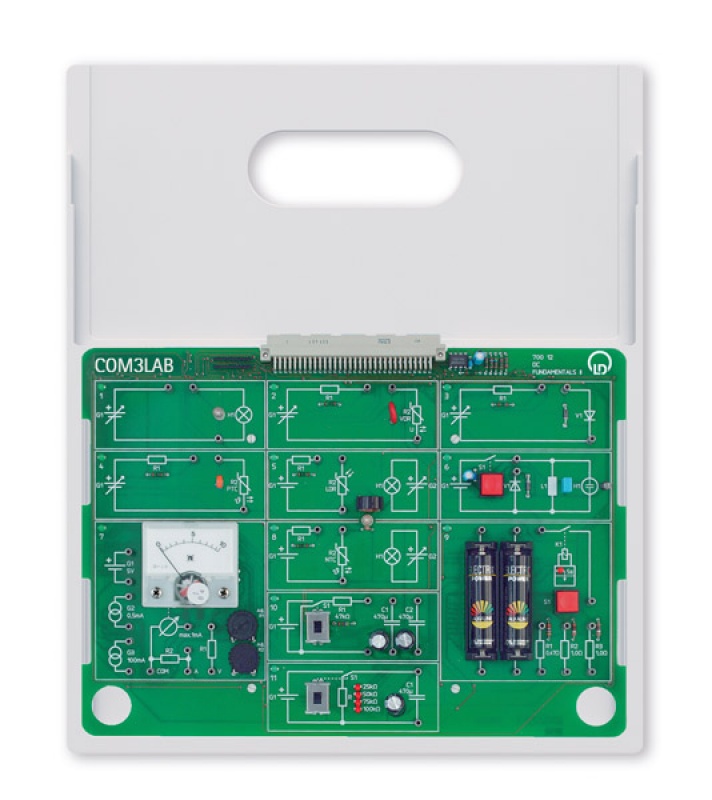

Course on the fundamentals of direct current technology, consisting of a test board with 11 different circuits.
In this course characteristics can be recorded and the basic types of electrical circuit can be mastered.

• VDR characteristic
• Diode characteristic
• LDR characteristic
• NTC characteristic
• PTC characteristic
• Capacitors
• Capacitors connected in parallel
• Capacitors connected in series
• RC circuits
• Inductance
• Moving coil instrument
• Batterie
• Two batteries connected in parallel
• Two batteries connected in series

Additional functions:

• word processing
• printer
• pocket calculator
• free experimentation
• Glossary

The test board is located in a stable course frame. The master unit is pushed onto the course frame and connected to the board. The security lock ensures safe communication.

The experiment board is powered by the Master Unit.
The wiring of the experiments is carried out using 2 mm cable.
Course content, experiment instructions and tasks are taught through a course-specific software.

Dodatkowo wymagane:

Kurs obwody DC 2 wykorzystuje następujące przyrządy pomiarowe:

•  2 multimetry cyfrowe
•  oscyloskop cyfrowy
•  generator funkcyjny
•  analizator cyfrowy

Czas trwania kursu: 180 min (4 x 45min)
