Opis produktu – Kurs układy cyfrowe część 1 nr kat. 7001701 – COM3lab
[700 1701] COM3LAB Course: Digital Technology I
Course on the basics of digital technology (circuits), consisting of a test board with various components and logic gates.
The course examines the principles and laws in digital technology.
- TTL-AND
- TTL-OR
- TTL-NOT
- TTL-XOR
- Boolean operations
- De Morgan’s law
- TTL-NAND
- Associative law
- Distributive law
- The KV diagram
- Coding
- Seven-segment display
- Half-adder
- Full-adder
- Multiplexer/Demultiplexer
- Fault simulation
Additional functions:
- Word processing
- Printer
- Pocket calculator
- Free experimentation
- Glossary

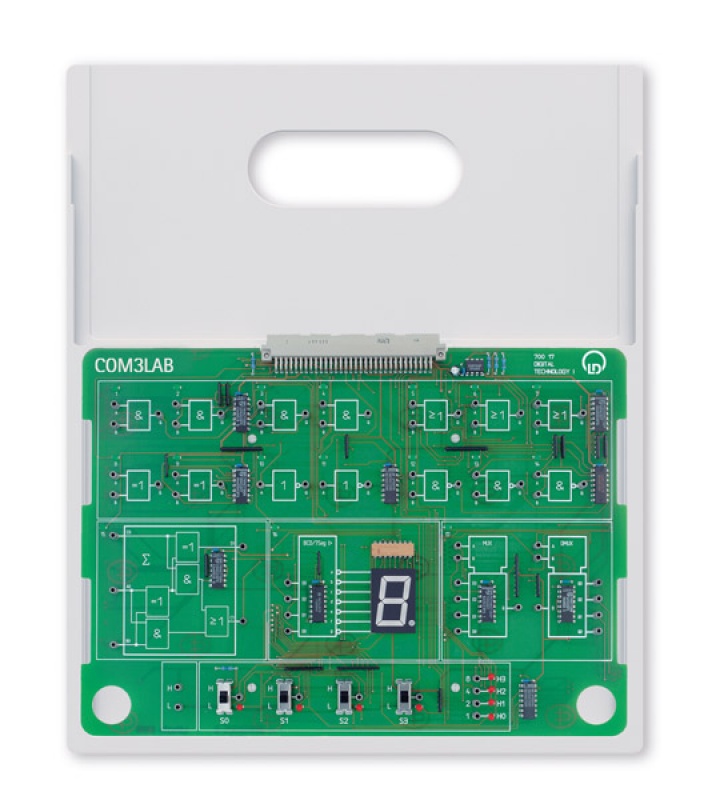

The experiment board is located in a stable course frame. The master unit is pushed onto the course frame and connected to the board. The security lock ensures safe communication.
The experiment board is powered by the Master Unit.
The wiring of the experiments carried out over 2 mm cable.
Course content, experiment instructions and tasks are taught through a course-specific software.
Technical data:
- 4 x AND, 3 x OR, 2 x XOR, 2 x NOR, 3 x NAND
- Full adder
- 7 Segment display
- Multiplexers, Demultiplexers
- 4 command switches
- 2 sensors, 2 LEDs
Scope of delivery :
Set of cables consisting of 5 connecting leads 30 cm equipped with 2-mm plugs
| 7001701 | COM3LAB course : Digital technology I |
|---|
Dodatkowo wymagane
| 700 00CBTEN | DVD: COM3LAB software, English | 1 |
| 700 020 | COM3LAB Master Unit | 1 |
| 700 022 | Safety cable 2mm | 1 |
Kurs wykorzystuje następujące przyrządy pomiarowe:
- 2 multimetry cyfrowe
- oscyloskop cyfrowy
- generator funkcyjny
- analizator logiczny
Czas trwania kursu 180 min (4 x 45 min)
