[700 1801] COM3LAB Course: Digital Technology II
Course on the basics of digital technology (switching networks), consisting of a test board with various circuits. The course deals with the operation and use of flip-flops.
- Flip-flops
- RS flip-flop
- RS flip-flop with clock input
- Mono and astable multivibrators
- Schmitt trigger
- D flip-flop
- JK flip-flop
- JK master-slave flip-flop
- Frequency divider
- Counters
- Shift register
- Parallel converters
Additional functions:
- Word processing
- Printer
- Pocket calculator
- Free experimentation
- Glossary

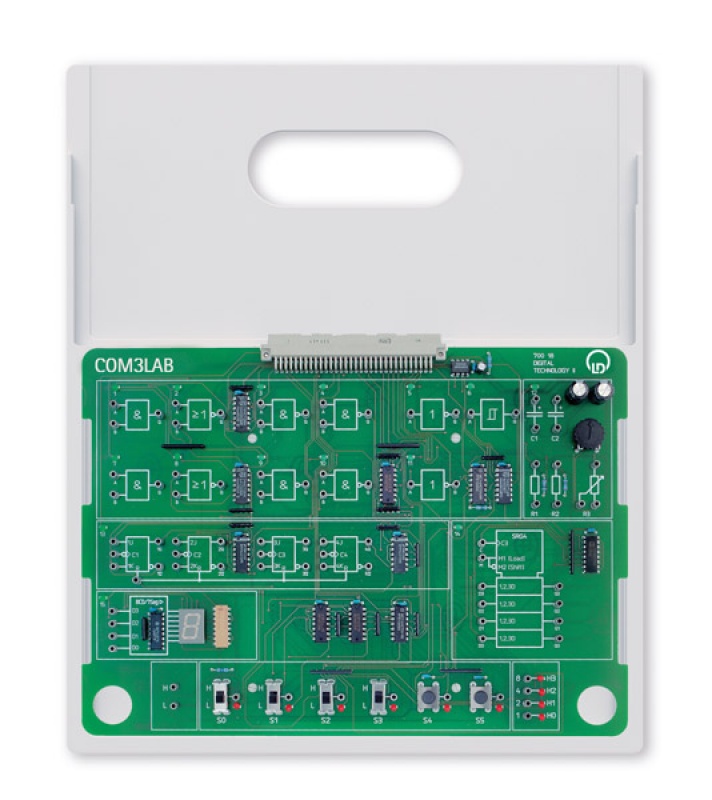

The experiment board is located in a stable course frame. The master unit is pushed onto the course frame and connected to the board. The security lock ensures safe communication.
The experiment board is powered by the Master Unit.
The wiring of the experiments carried out over 2 mm cable.
Course content, experiment instructions and tasks are taught through a course-specific software.
Technical data :
- 2 x AND, 2 x NOR, 4 x NAND
- 2 Inverter
- 1 Schmitt trigger
- 1 7-segment display
- 4 JK flip-flop
- 1 Universal shift register
- 4 command switches,
- 2 sensors, 4 LEDs
| 700 1801 | COM3LAB course : Digital technology II |
|---|
Dodatkowo wymagane:
| 700 00CBTEN | DVD: COM3LAB software, English | 1 |
| 700 020 | COM3LAB Master Unit | 1 |
| 700 022 | Safety cable 2mm | 1 |
Kurs wykorzystuje następujące przyrządy pomiarowe:
- 2 multimetry cyfrowe
- oscyloskop cyfrowy
- generator funkcyjny
- analizator cyfrowy
Czas trwania kursu: 180 min ( 4 x 45min)
