Opis
- 20,000/2,000 Counts Dual Display
- Test Frequency : 100/120Hz/1/10kHz
- Auto LCR Mode for DUT Measuring
- 0.2% Basic Accuracy
- Measurement Parameter : L,C,R,D,Q,ESR,θ,DCR
- Parallel/Series Testing Mode
- Sorting Mode for Quality Control
- 2Wire or 5 Wire Measurement Available
- Data Hold and Zero Mode Supported
- Auto Range, Auto Backlit
- Low Battery Indication
- Auto Power off
-
Data Collection or AC power operation (Optional)

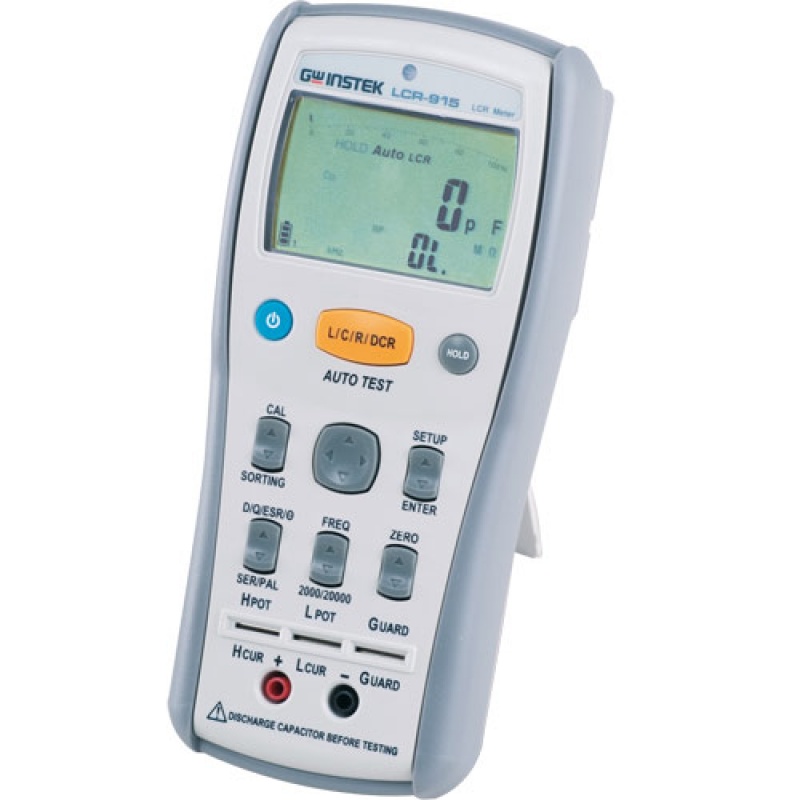

The LCR-915 is a smart, convenient and fully-functional dual display handheld LCR meter. The test frequency extends as high as 10 kHz, providing greater flexibility to test a wider range of components. The LCR-915 10 kHz Hand Held LCR Meter uses a dual 20,000/2000 count display. The 20000 count display is used for displaying primary parameters such as capacitance, inductance, reactance and resistance and a 2000 count display is for secondary parameters such as Q, D, θ,ESR and RP measurements. Secondary measurements can also be combined with the primary measurement while the primary measurement is still being taken.
