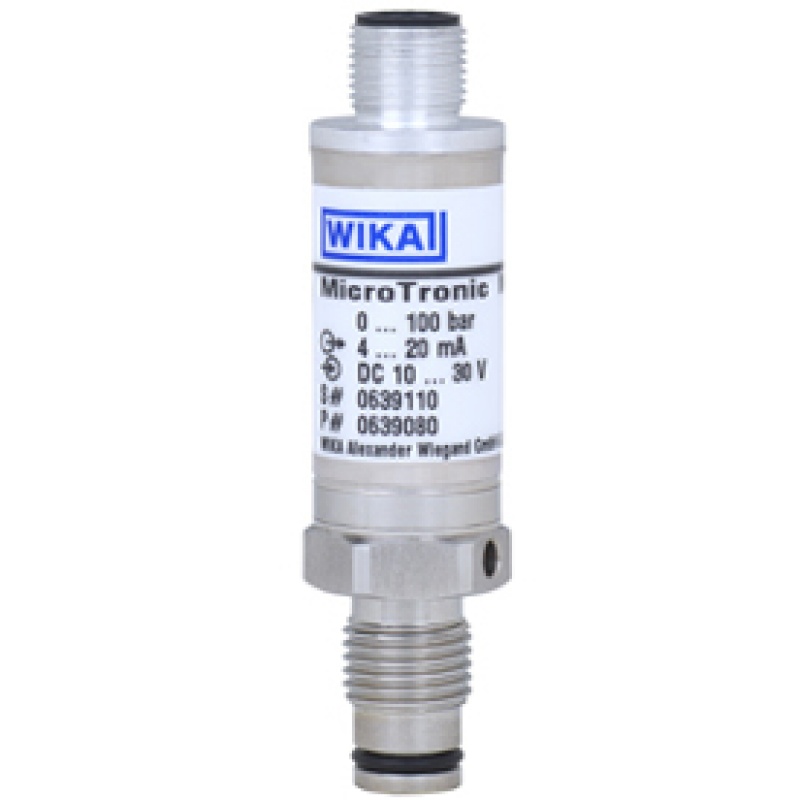

Miniaturowy przetwornik ciśnienia Model M-10, wersja standardowa Model M-11, wersja z membraną czołową

Opis produktu – Miniaturowy przetwornik ciśnienia Model M-10, wersja standardowa Model M-11, wersja z membraną czołową

Zastosowania

• Budowa maszym
• Hydraulika / Pneumatyka
• Ogólne zastosowania przemysłowe

Specjalne właściwości

• Sygnały wyjściowe prądowe i napięciowe
• Stopień ochrony 65 lub 67
• Części zwilżane ze stali nierdzewnej
• Szczelny próżniowo

Specyfikacje

Slender
The model M-10 or M-11 pressure transmitter is one of the thinnest and smallest industrial pressure transmitters on the market. It therefore offers the ideal solution for applications where mounting space is limited.

Robust
Despite their slender and compact design, the models M-10 and M-11 are designed for high pressure ranges up to 1,000 bar. The thin-film measuring cell, through the optimised design of its process connection, guarantees a high measurement performance, even with dynamic loads and extreme pressure spikes.

Precise
The models M-10 and M-11 offer an accuracy of 0.5 %. Along with an exceptional long-term stability, reliable acquisition of the measured values is ensured.

Flush
The model M-11 pressure transmitter features a flush process connection, which sets it apart from other miniaturised pressure transmitters. This process connection is especially suited to measurement in highly viscous, contaminated or crystallising media.
