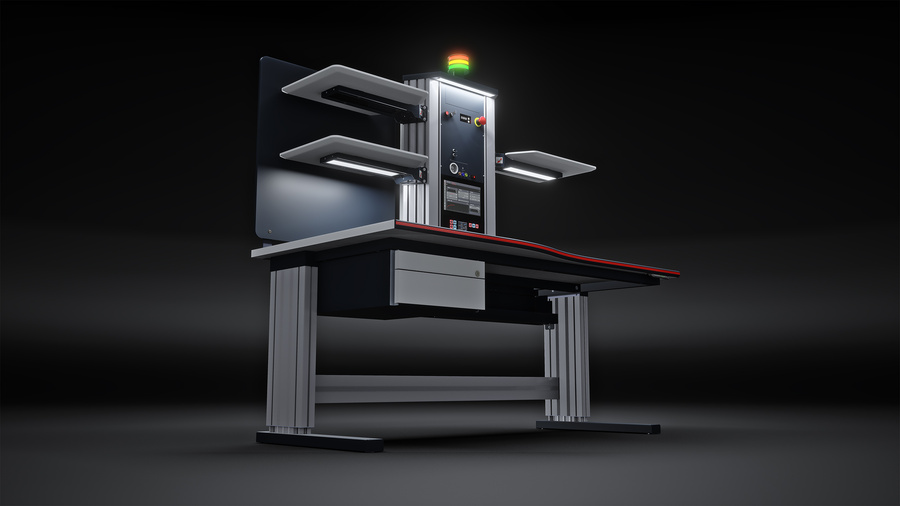

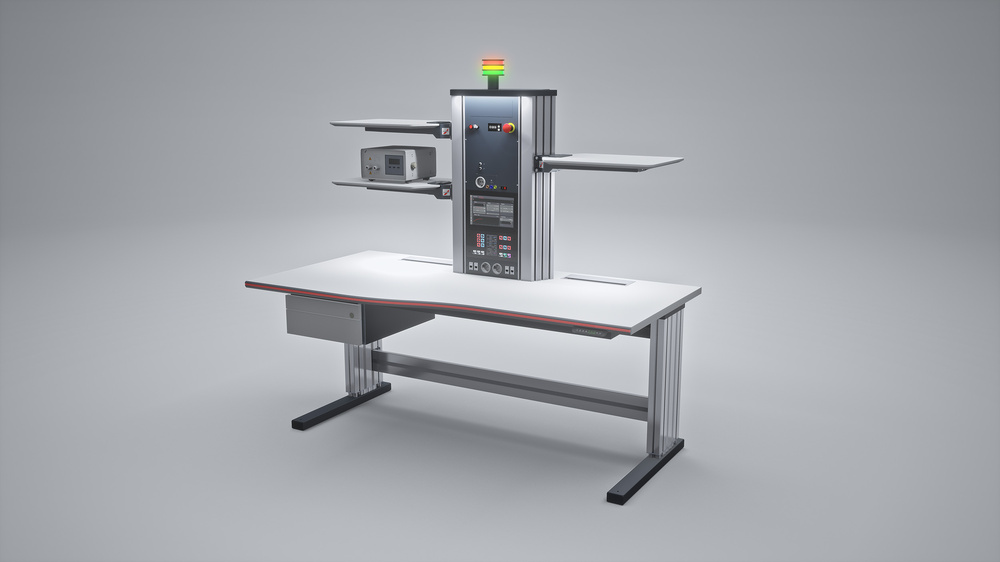

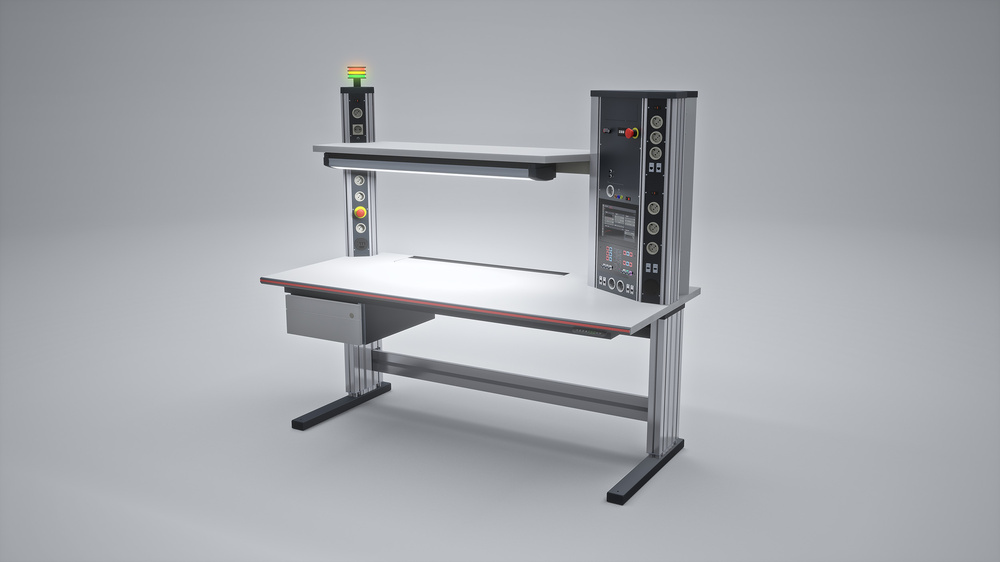

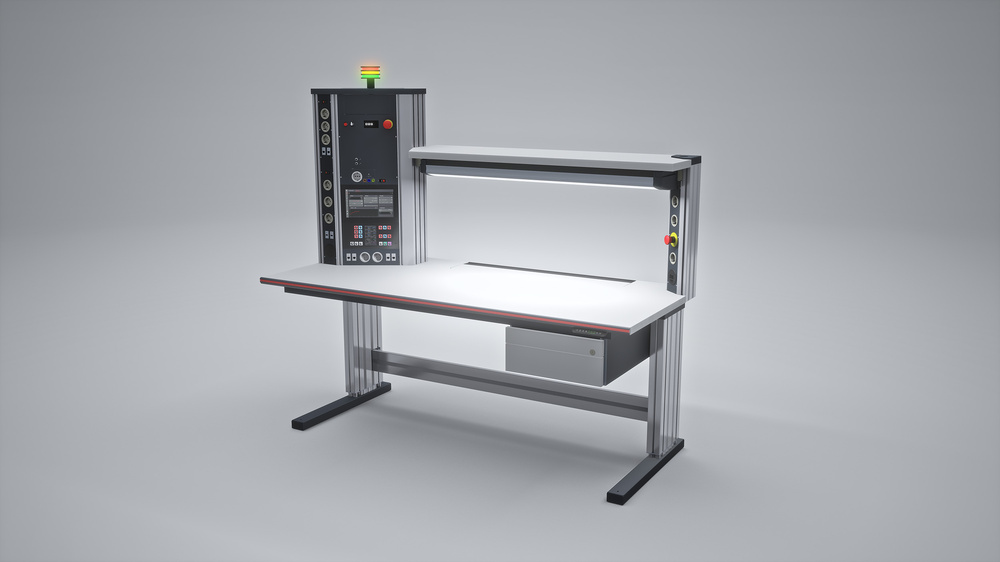

Specyfikacja – Stoły elektrotechniczne PRIMUS TWO
PRIMUS DWA
ZAPROJEKTOWANE Z MYŚLĄ O INNOWACJACH.
Optymalne oświetlenie, centralne, wielofunkcyjne sterowanie, mnogość opcji połączeń, elastyczne powierzchnie magazynowe i dużo miejsca do innowacyjnej pracy – wszystko to połączone w nowoczesnym systemie miejsca pracy firmy ELABO.
Individual lighting design
- The innovative LED lighting provides glare-free and homogeneous illumination of the work surface. It always creates a perfect working atmosphere.
- 1 x base light and 2 x board light
- Stepless dimmable from 0..100%
- Colour temperature adjustable from 3000K to 5000K
- board light „invisibly“ integrated into the flex board
- Controllable via the elution two lab
Unrestricted ergonomics
- main base neat and clearly designed
- Compact and extremely user-friendly
- Sufficient free space to work effectively
- flex board allows variable height adjustment left and right
- Self supporting board frame ensures maximum stability
All-round safety
- Modern switch-on panel, clearly arranged and always in the user‘s focus
- Personal protection systems integrated invisibly but still within reach
- LED status light
Consistent design
- Interchangeable light edges on the system profiles and the table edge stand for the elegant design
- Changeable, ergonomically shaped table edge with innovative colour coding. ESD system tables can for example be equipped with a yellow light edge for clear labelling.
- The new, timeless design concept from ELABO: Innovative, durable, future-proof and elegant
base control
- Ultra-compact Single Board Computer with high performance
- Quad core processor with 1.5 GHz
- 4 GB RAM
- USB / LAN interfaces
- 10.1“ display with 1280 x 800 pixels
- Touch sensor
- Chemically hardened and anti-reflective front glass
- Invisible fastening mechani

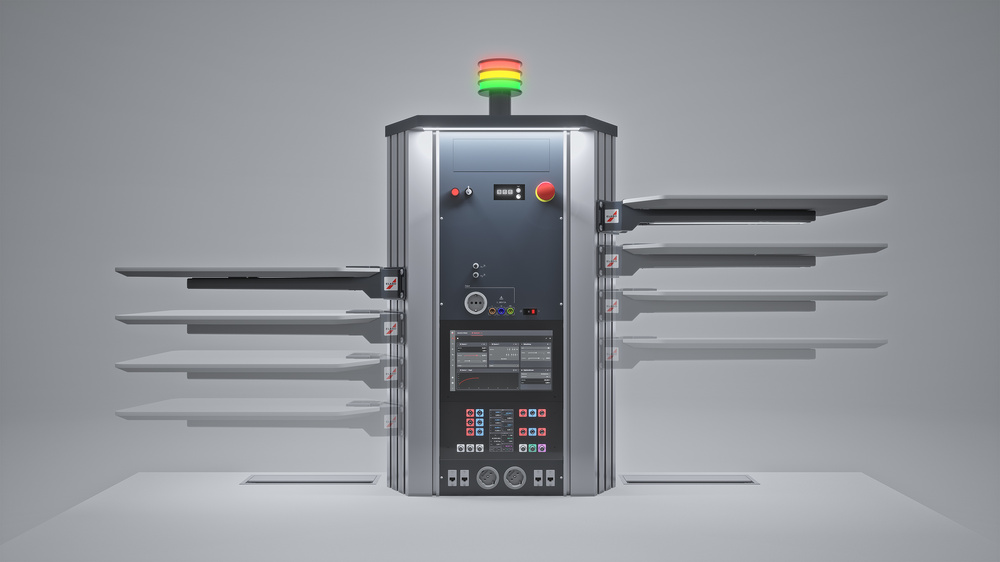

power unit
- power unit with innovative pick-up panel
- 4.3“ display for showing the current parameters
- Pick-up sockets with intelligent 4-quadrant RGB LED socket illumina – tion for signalling various operating states
- Display parameters are assigned to the pick-up sockets directly via the display in a self-explanatory way.
- The following modules are integrated in the power unit:
- 3 x DC laboratory power supply unit 48 V / 5 A
- 2 x highly flexible digital multimeter with parallel current and voltage measurement input
Voltage range AC / DC: up to 1000 V
Current measuring range AC / DC: up to 20 A
Resistance measurement - 1 x frequency generator with 40 MHz and frequency counter
- Chemically hardened and anti-reflective front glass
- Invisible fastening mechanism
Innovative laboratory measurement technology with elution two lab
- Platform-independent software built on micro services and offering a wide range of application possibilities
- Application-specific configuration of the software interface possible for each user through intuitive dashboarding
- Browser-based frontend with responsive design and multiple operation function (f. e. computer, tablet, smartphone)
- Open interface technology for the integration of standard measurement and supply technologies
- Workplace management with innovative assistance functions
