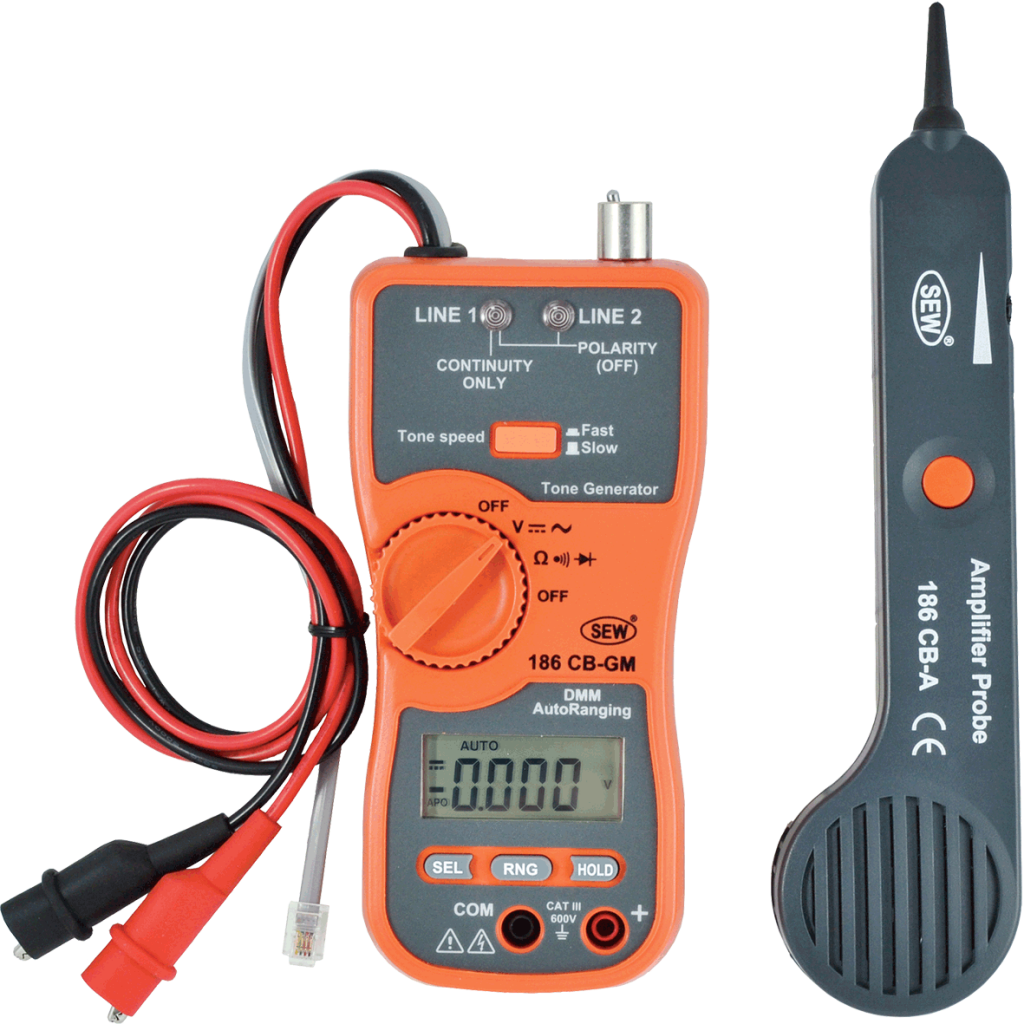

Opis produktu – Traser przewodów z multimetrem 186CB
| V | 0.1mV | ±(1.0%rdg+5dgt) |
| 4V | 1mV | |
| 40V | 10mV | |
| 400V | 100mV | |
| 750V | 1V | |
| DC Voltage | ||
|
Range |
Resolution |
Accuracy |
| 400mV | 0.1mV | ±(0.5%rdg+3dgt) |
| 4V | 1mV | |
| 40V | 10mV | |
| 400V | 100mV | |
| 1000V | 1V | |
| Resistance | ||
| Range | Resolution | Accuracy |
| 400Ω | 0.1Ω | ±(1.2%rdg+3dgt) |
| 4kΩ | 1Ω | |
| 40kΩ | 10Ω | |
| 400kΩ | 100Ω | |
| 4MΩ | 1kΩ | |
| 40MΩ | 10kΩ | ±(2.0%rdg+4dgt) |
| Continuity Test | ||
|
Range |
Audible threshold |
|
| 400Ω | Less than 25Ω | |
| SPECIFICATIONS | ||
| Frequency detection | Amplifier Probe: 1Hz~12kHz Tone Generator: 1kHz±15% |
|
| Over protection | Tone Generator: 80V DC | |
| Alternating tone | Fast and Slow | |
| Connection | Tone Generator : RJ11 connector alligator clip x 2 |
|
| Sensitivity control | ˇ | |
| Receiver distance | <50cm | |
| Operating temperature & humidity |
0°C ~ 40°C, 80% Max. | |
| Temperature & humidity |
Operating: 0°C~40°C≤80% R.H. Storage: -10°C~50°C≤80% R.H. |
|
| Dimensions | Amplifier Probe: 230(L) x 56(W) x 27(D)mm Tone Generator/DMM: 183(L) x 82 (W) x44(D)mm |
|
| Weight (battery included) |
Amplifier Probe: 125g Tone Generator/DMM: 305g |
|
| Power source | Amplifier Probe: 9V(6F22) × 1 Tone Generator: 9V(6F22) × 1 DMM: 1.5V(AAA) x2 |
|
| Safety standard | EN 61010-1 CATⅢ600V EN 61326-1 EN 55011 EN 61000-4-2 EN 61000-4-3 |
|
