Opis produktu – Wskaźnik napięcia 5 kV AC / 7 kV DC – Tietzsch MULTISAFE HS 5

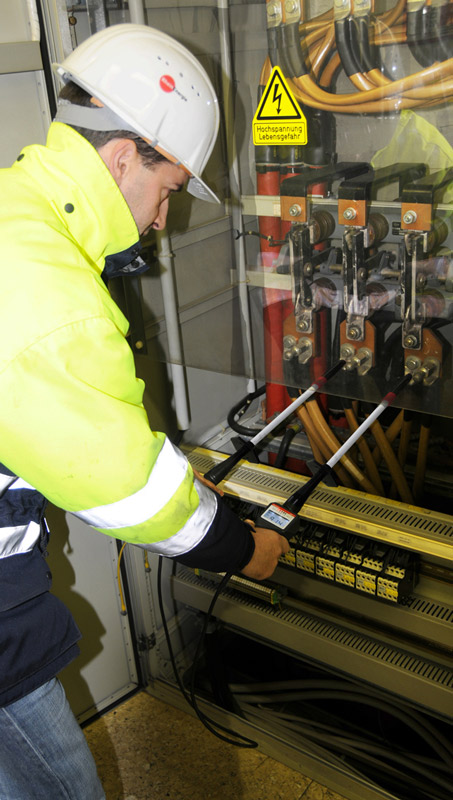

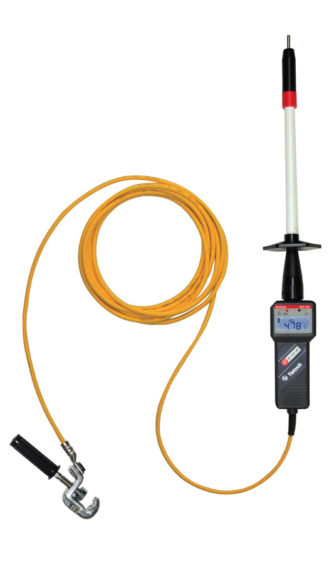

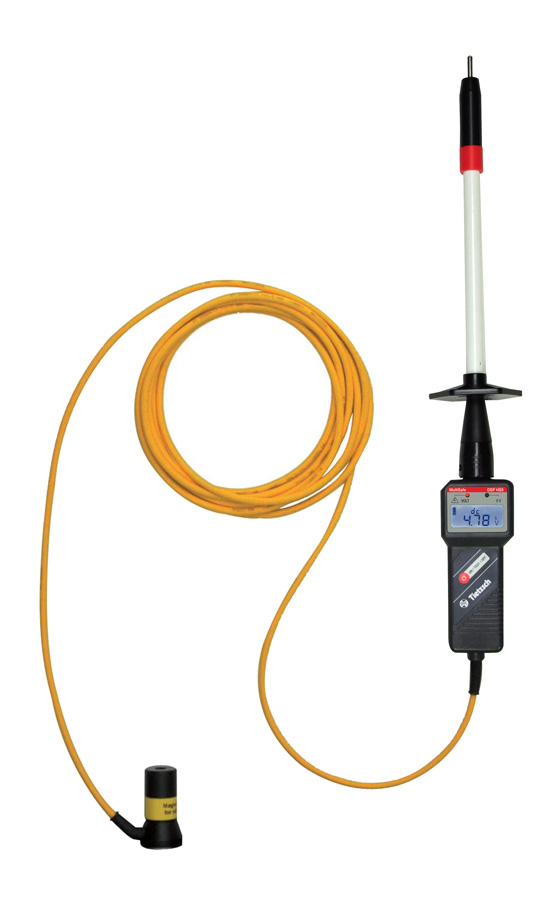

The MultiSafe HS 5 high voltage tester is a two-pole high voltage tester in a compact design for use in narrow switchgear. Voltage tests can be performed quickly and safely up to 5 kV AC / 7 kV DC.
As a successor to the high-voltage probes DSP HS-5, the MultiSafe HS 5 is a complete high-voltage tester and has an integrated self-test. Due to its even easier handling errors are excluded. The MultiSafe HS 5 automatically shows DC and AC voltage as well as the frequency on the illuminated display.
Voltage tester:
- precise display of the voltage 6 V up to 5 000 V AC / 7 000 V DC

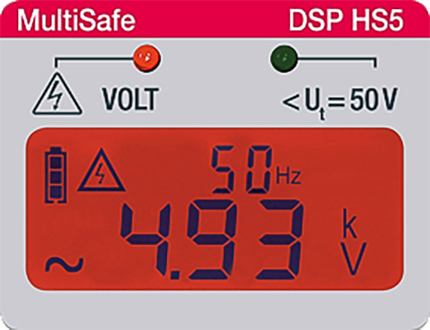

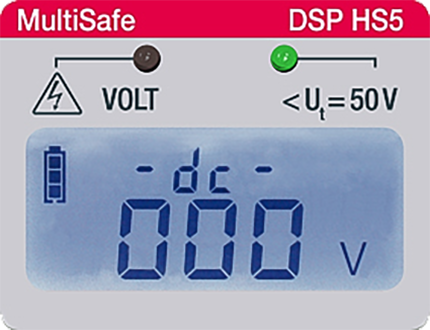

- large two-color illuminated display (red / white), for a clear warning of dangerous voltages
- clear LED indicator for dangerous voltage
- acoustic warning of dangerous voltage
Safety:
- integrated self-test to test the protective resistors, the display and the electronics
- surge voltage strength > 100 kV
- highest safety through molded protective resistors
More functions:
- for indoor installations
- different test electrodes for every application
- easy operation with just one button
- extremely stable housing
- IP 65 – waterproof
