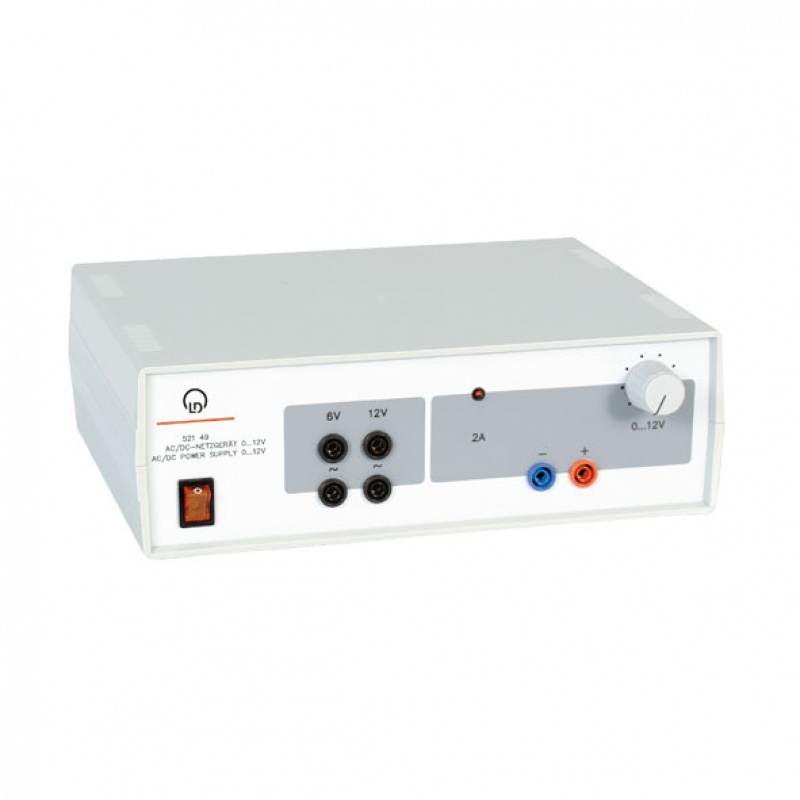

Opis produktu – Zasilacz AC/DC 0..12V – LD 521 49
-
Output voltages:
(1) 0-12 V DC, continuously adjustable
(2) 6 V/12 V AC fixed voltage outputs
each via 4-mm sockets -
Load Capacity:
(1) 2 A max (short-circuit proof)
(2) 3 A - Stabilisation at full load : ≤ 20 mV
- Residual ripple : ≤ 2 mVrms
- Display: overload current display with red LED
- Connection voltage: 230 V, 50/60 Hz
- Power consumption: max. 75 VA
- Fuses: internal multifuse-semiconductor fuse
- Dimensions: 26 cm x 9 cm x 20 cm
- Weight: 2 kg
