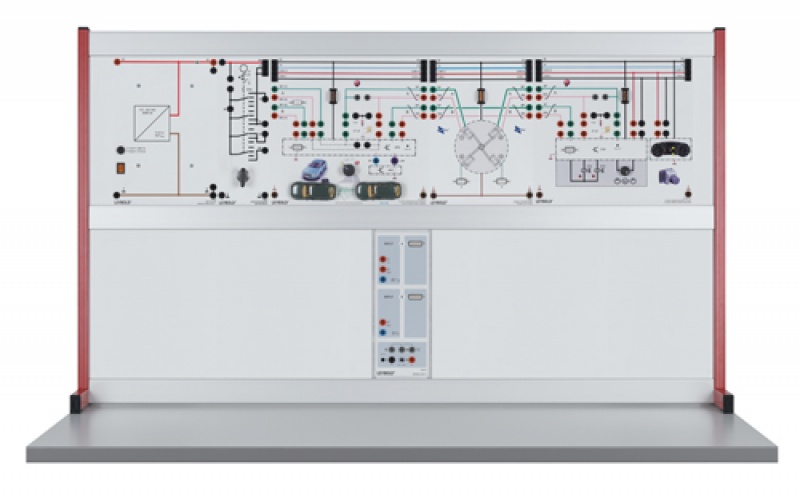

A2.6.1.7 Sieciowe systemy motoryzacyjne: Brake assist
The FlexRay training system contains a brake assistant function. It combines the following:
|
||
| Two model cars simulate two vehicles tailgating. The FlexRay data bus transfers this state to the control unit for ABS/ESP, which then triggers the brakes to establish the safe distance again. The default value depends on the road condition (dry, wet, slick). The LIN data bus transmits the roadway’s condition to the radar sensor control unit. Activating the high-pressure switch valve and the pump displays the brake’s function. A high-speed CAN bus connection controls the corresponding indicator lamp in the instrument cluster. |
||
| The system can be expanded to an „active star” (773 959) with FlexRay components. The sensor control unit also has an available connection for a FlexRay/USB interface (773 960) to analyze the protocol on the computer.
The FlexRay lines can be completed with external resistors and are set for signal registration with an oscilloscope.
|
||
|
||
| 773 958 | FlexRay Brake Assist 4 | 1 |
| 773 960 | FlexRay interface USB 4 | 1 |
| 738 02 | Automotive power supply 13.8 V/36 A 8 | 1 |
| 577 28 | Resistor 47 Ohm, STE 2/19 4 | 4 |
| 575 299 | Digital Storage Oscilloscope 1522 | 1 |
| 575 231 | Probe 100 MHz, 1:1 / 10:1 8 | 2 |
| 524 013S | Sensor-CASSY 2 Starter 4 | 1 |
| 773 959 | FlexRay Active Star 4 | 1 |
| 738 10 | Ignition Switch 8 | 1 |
| 500 59 | Set of 10 safety bridging plugs, black 4 | 3 |
| 500 592 | Safety Bridging Plugs with Tap, black, set of 10 8 | 1 |
| 738 9821 | Safety experiment cables, set of 51 | 1 |
| 566 890DE | LIT: T3.2.12.9 FlexRay in vehicles 4 | 1 |
| 738 01 | * Cable and plug box 4 | 1 |
| 738 491S | * Automotive fault simulator, starter 8 | 1 |
| 500 593 | * Fault simulation plugs, black, set of 10 | 1 |
| 726 09 | Panel frame T130, Two Level 8 | 1 |
| Articles marked with * are not essential, we do however recommend them to carry out the experiment. | ||
