Opis produktu – E 2.1.3.1 Maszyny elektryczne niskiego napięcia
The experiments use components from the electrical machine teaching models system and utilise safety extra-low voltage. All machines are mounted on a base unit which is set up vertically in a training panel frame.
Objectives
- Recognising basic physical principles
- Recording machine characteristics
- Introduction to drive technology
- Use of simple tools (spanners, oil cans etc.)
This equipment set allows DC, AC and three-phase machines to be assembled from a few easily sorted separate components. The fully functional machines demonstrate the various combinations of stators and rotors and allow for investigation of the various circuit configurations. In spite of these educational machines having model-like characteristics, it is possible to demonstrate the physical processes and typical responses of large-scale machines. The machines are mounted on a base terminal unit and set up with special overlay masks. The open design makes it possible to observe the individual functioning parts in operation. All experiments are carried out using safety extra-low voltage. In addition to conventional machine types, the fundamental properties of linear motors are also covered. New to the range are the three-phase machines with permanently excited rotors made of rare earth metals (high-efficiency rotors).
The equipment set incorporates student experiments which can be carried out in a laboratory safely using safety extra-low voltage. Experiment instructions are contained in a manual in either printed or digital form.
The target group is made up of students in general or vocational education. The experiments are designed as an introduction at a simple level of understanding.
For more advanced understanding, E2.1.3.2 ELM High-efficiency machines for safety extra-low voltage is recommended.
Topics
- AC generators with permanent magnet
- How terminal voltage depends on speed and load
- Determination of neutral zone
- Three-pole rotors/twelve-pole rotors
- Generators with separate excitation
- Remanence and self-excitation
- Series-wound and shunt-wound generators
- Compound-wound generators
- AC generators
- Stationary armature and rotating armature machines
- Three-phase generators
- Generator with load in star circuit with and without neutral conductor
- Delta circuit for a generator
- Synchronisation of three-phase generators with the mains
- DC motors
- Commutation
- Motors with separate excitation
- Shunt-wound/series-wound/compound-wound motors
- AC motors
- Universal motors
- Single-phase synchronous and asynchronous (induction) motors
- Starting motors
- Single-phase induction motor with capacitive/resistive auxiliary phase
- Repulsion motors
- Speed control and reversal by adjusting brushes
- Shaded-pole motors
- Rotating fields
- Reversal of rotational sense
- Three-phase motors
- Three-phase squirrel cage rotors
- Star and delta circuits
- Speed response to loading
- Braking circuits
- DC braking
- Stator resistance starting circuit
- Three-phase slip-ring rotors
- Rotor standstill voltage and rotor current
- Switchable pole three-phase motors in Dahlander configuration
- Three-phase machines with six pole pieces
- Synchronous motors
- Linear motors

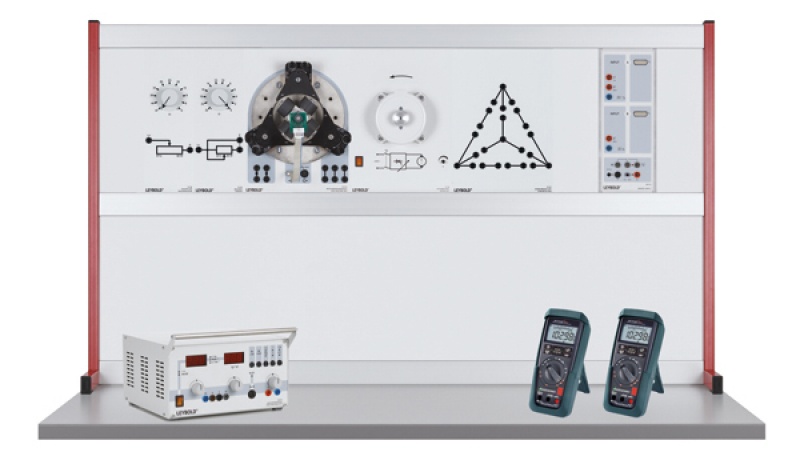

Similar to illustration
| 563 11 | ELM coil, 250 turns | 6 |
| 563 12 | ELM squirrel-cage rotor | 1 |
| 563 13 | ELM brush | 5 |
| 563 16 | Allen key | 1 |
| 563 17 | ELM centring disc | 1 |
| 563 18 | ELM brush holder rack | 1 |
| 563 22 | ELM two-pole rotor | 1 |
| 563 23 | ELM three-pole rotor | 1 |
| 563 24 | ELM drum rotor | 1 |
| 563 25 | ELM rotating field attachment and squirrel cage ring | 1 |
| 563 28 | ELM magnetic needle rotor | 1 |
| 563 29 | ELM aluminium ring with iron disc | 1 |
| 563 31 | Oil, 100 ml, in dropping bottle | 1 |
| 727 811 | Basic machine unit | 1 |
| 727 82 | Basic terminal unit | 1 |
| 727 83 | Set of masks | 1 |
| 727 85 | Starter | 1 |
| 727 86 | Field regulator | 1 |
| 727 87 | Star-delta load | 1 |
| 727 88 | Drive unit | 1 |
| 685 96 | Driving belt, long for drive unit 72788 | 1 |
| 563 091 | ELM pole piece for magnets | 2 |
| 563 101 | ELM wide pole piece for coils | 3 |
| 563 115 | ELM coil, 500 turns | 2 |
| 563 201 | ELM narrow pole piece for coils | 6 |
| 563 211 | ELM split pole piece for coils | 2 |
| 505 171 | Bulbs, 6 V/1.1 W, E10, set of 10 | 3 |
| 505 191 | Bulbs, 15 V/2 W, E10, set of 5 | 3 |
| 510 48 | Magnets, 35 mm Ø, pair | 1 |
| 578 16 | Capacitor, 4.7 µF, STE 2/19 | 3 |
| 579 06 | Lamp holder, E10, top, STE 2/19 | 3 |
| 579 10 | Push button (NO), STE 2/19 | 1 |
| 579 13 | Toggle switch, STE 2/19 | 1 |
| 313 20 | * Digital hand-held tachometer | 1 |
| 524 013S | * Sensor-CASSY 2 Starter | 1 |
| 531 282 | Multimeter Metrahit Pro | 2 |
| 726 09 | Panel frame T130, two-level | 1 |
| 725 721G | * Three-phase generator in case | 1 |
| 725 579G | Three-phase supply / experiment transformer | 1 |
| 563 04 | Storage tray for ELM apparatus | 1 |
| 500 59 | Safety bridging plugs, black, set of 10 | 1 |
| 500 592 | Safety bridging plugs with tap, black, set of 10 | 1 |
| 501 532 | Connecting leads, 19 A, set of 30 | 1 |
| 564 171 | LIT: El. Motor & Gen. Mod. B (German) | 1 |
| 564 172 | * LIT: El. Motor & Gen. Mod. B (English) | 1 |
Articles marked with * are not essential, we do however recommend them to carry out the experiment.
