Kurs obwody elektryczne AC część 2 nr kat. 7001401 – COM3lab

Opis produktu – Kurs obwody elektryczne AC część 2 nr kat. 7001401 – COM3lab

[700 1401] COM3LAB Course: AC Technology II

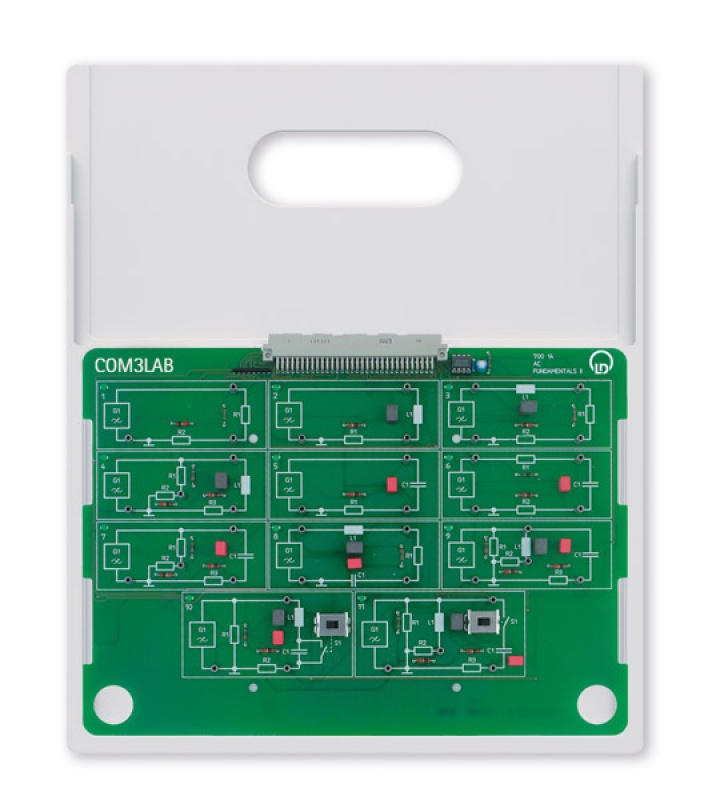

Course on the fundamentals of alternating current technology, consisting of a test board with 11 different circuits.
This course covers the behaviour of resistance, coil and capacitor in an AC circuit.

• Generating  alternating voltages
• Key parameters of AC technology
• Ohmic resistance in the AC circuit
• Coils in the AC circuit
• Inductive reactance
• Series RL circuits
• Parallel RL circuits
• Capacitor in an AC circuit
• Capacitive reactance
• Series RC circuits
• Parallel RC circuits
• Series RLC circuits
• Parallel RLC circuits
• Series compensation
• Parallel compensation
• Voltage resonance
• Current resonance

Additional functions:

• Word processing
• Printer
• Pocket calculator
• Free experimentation
• Glossary

The experiment board is located in a stable course frame. The master unit is pushed onto the course frame and connected to the board. The security lock ensures safe communication.

The experiment board is powered by the Master Unit.
The wiring of the experiments carried out over 2 mm cable.
Course content, experiment instructions and tasks are taught through a course-specific software.

Dodatkowo wymagane:

Kurs „Obwody AC 2” wykorzystuje następujące przyrządy pomiarowe:

•  2 multimetry cyfrowe
•  oscyloskop cyfrowy
•  generator funkcyjny
•  analizator logiczny

Czas trwania kursu: 180 min ( 4 x 45min)
