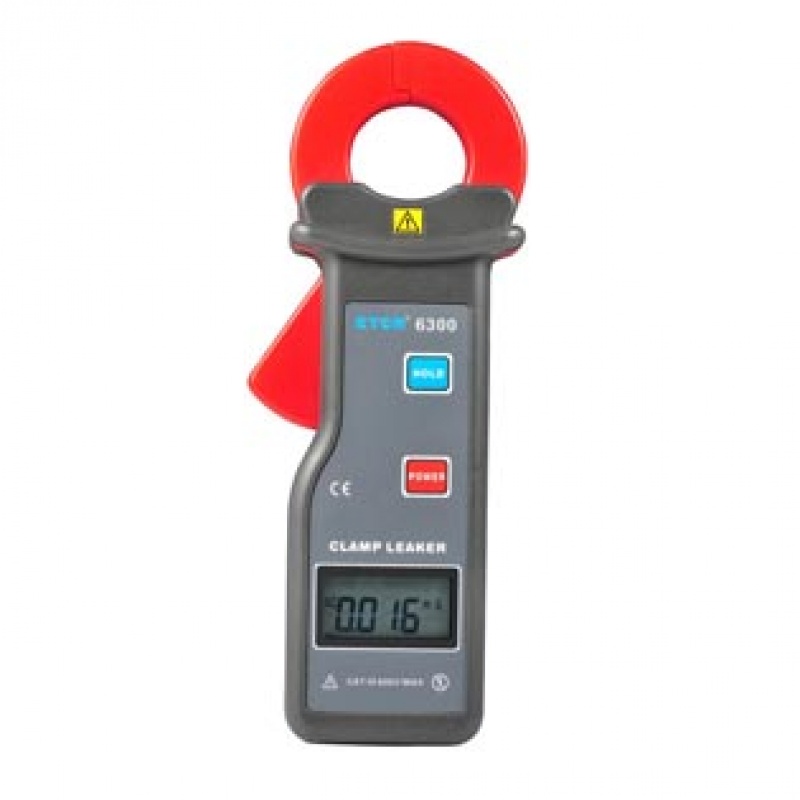

Opis produktu – Miernik prądu upływu AC ME6300 (0.000mA~60.00A)
|
Function
|
AC leakage measurement, AC current measurement, On-line AC current measurement
|
|
Power Supply
|
6F22,9V
|
|
Process Type
|
Clamp CT, Integral Approach
|
|
Display Type
|
4 Digits LCD
|
|
Clamp Size
|
25mm×30mm
|
|
Meter Dimension
|
LWH: 175mm×70mm×38mm
|
|
LCD Dimension
|
35mm×21.5mm; Display Dimension: 32mm×15mm
|
|
Sampling Rate
|
2 Times/Second
|
|
Frequency
|
50Hz, 60Hz Automatic identification
|
|
Shifting
|
Automatic Shift
|
|
Range
|
0.000mA~60.00A
|
|
Resolution
|
1uA
|
|
Accuracy
|
±1.5%±5dgt (23?±3?, below 70%RH)
|
|
Line voltage
|
Below AC 600V
|
|
RS232 Interface
|
With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring
|
|
Data Memory
|
99 sets, “FULL” Blinking when memory is full
|
|
Peak Maintaining
|
Peak value capture hold function, press HOLD without Release to display peak value
|
|
Reading Hold
|
Reading hold function: “DH” symbol display
|
|
Overflow display
|
Range overflow function: “OL” symbol display
|
|
Automatic Shutdown
|
5 minutes after the boot
|
|
Battery Detection
|
When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement.
|
|
Meter Weight
|
120g (With battery)
|
|
Rated Power
|
5mW
|
|
Working Temperature and Humidity
|
0?~40?; below 80%rh
|
|
Storage Temperature and Humidity
|
-10?~60?; below 70%rh
|
|
Insulation Strength
|
AC2kV/rms (between core and box)
|
|
Safety Provisions
|
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT ?(600V)
|
|
Accessories
|
Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece
|
