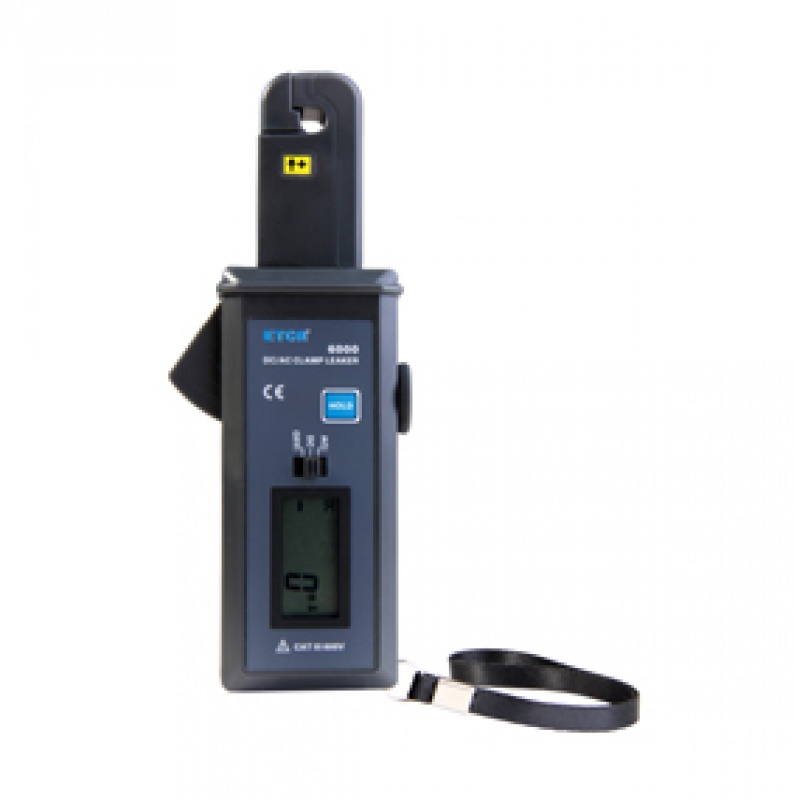

Opis produktu – Miernik prądu upływu AC/DC ME6000 (0mA-60.0A AC/DC)
|
Function
|
Measurement of AC/DC current, leakage current
|
|
Power Supply
|
6F22,9V
|
|
Test Mode
|
Clip-on CT, integral mode
|
|
Clamp Size
|
Φ7mm
|
|
Measurement Range
|
0mA-60.0A AC/DC
|
|
Resolution
|
1mA AC/DC
|
|
Accuracy
|
±2%rdg±5dgt (23?±5?, below 75%rh)
|
|
Display Mode
|
Four digits LCD display
|
|
Dimension
|
LWH: 168mm×65mm×34mm
|
|
LCD Dimension
|
35mm×21.5mm; display domain: 32mm×15mm
|
|
Sampling Rate
|
2 times/s
|
|
Frequency
|
AC: 45Hz-400Hz
|
|
Polarity Indication
|
DC current auto identified and display“—”
|
|
Test Position
|
Tested wire in the jaw center
|
|
Range Shift
|
Automatically
|
|
Line Voltage
|
AC600V
|
|
RS232 Interface
|
Data stored in the memory of the meter via RS232 upload to PC
|
|
Com-Configure
|
Baud rate:9600, data bit:8, stop bit:1
|
|
Data Memory
|
99units, FULL blinks when the memory is full
|
|
Reading Hold
|
DH indicating the reading is hold
|
|
Out of Range
|
OL indicating the current is out of range
|
|
Auto Power-off
|
5 Minutes after power on, it will power off automatically to lower the power consumption
|
|
Battery Voltage
|
Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed
|
|
Weight
|
180g (including the battery)
|
|
Working Current
|
10mA
|
|
Consumption
|
10mW
|
|
Working Temperature and Humidity
|
-10?-50?,below 80%rh
|
|
Limit Temperature Error
|
-10?-0? and 40?-50?, within 2%rdg
|
|
Storage Temperature and Humidity
|
-10?-60?,below 70%rh
|
|
Insulating Strength
|
AC2kV/rms (between the alloy of the clamp and the housing)
|
|
Applicable safety rules
|
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT ?(600V)
|
